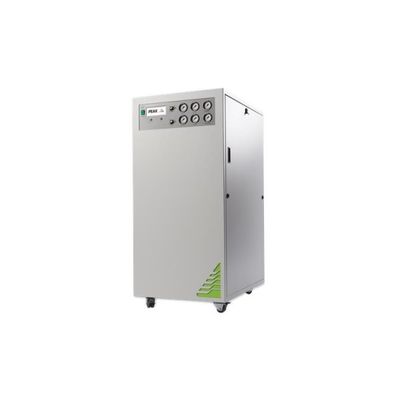

Genius - Model 3030 -Nitrogen and Dry Air Gas Generator

FromPEAK Scientific Instruments Ltd

SHARE

The Genius 3030 has been designed to supply curtain, source & exhaust gases for selected Sciex LC-MS instruments. This generator has two outlets for each of the three gases supplied, two of nitrogen and four of dry air, allowing two Sciex LC-MS instruments to be comfortably run using one Genius 3030.

Most popular related searches

noise and vibration service

noise and vibration

nitrogen and air generator

dry air generator

nitrogen generator

Curtain, source and exhaust gas all in one unit
Two outlets for each gas supplies two Sciex LC-MS
Higher flow rate 30 series generator designed for hungrier LC-MS applications
Compressor based solution, no need for an external air supply
Minimal set-up required
Highly economical source of nitrogen gas with low lifetime running costs
The latest generation of compressors located in an insulated chamber reducing noise and vibration
Service indication to allow planning of preventative maintenance
Gas is supplied on demand so generator works to your schedule
Wheels make it easy to manoeuvre generator around the lab
12 month comprehensive on-site warranty

Gas

Gas Type: Nitrogen
Min Gas Flow: 0L/min
Max Gas Flow: 2 x 12L/min
Max Output Pressure: 80psi/5.5bar
Gas Type: Air
Max Gas Flow: 2 x 24L/min
Max Output Pressure: 80psi/5.5bar
Gas Type: Air
Min Gas Flow: 2 x 8L/min
Max Gas Flow: 2 x 8L/min
Max Output Pressure: 60psi/4.1bar

Site & installation

Start Up Time: 30 mins
Voltage: 230 ± 10% VAC
Frequency: 50 / 60 Hz
Current: 12 Amps
Accreditations: CSA, CE

Dimensions & weight

Size (HxWxD) mm: 1322 x 600 x 850 mm
Size (HxWxD) Inches: 52 x 23.6 x 33.5 inches
Generator Weight: 196kg / 431.2lbs
