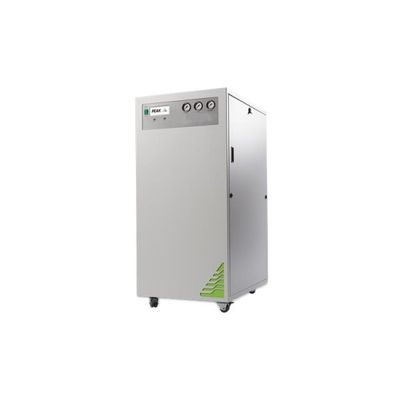

Genius - Model 3031 -Nitrogen and Dry Air Gas Generator

• Higher flow rate 30 series generators for higher gas demand LC-MS applications such as the 6500 & X500R
• Compressor based solution, no need for an external air supply
• Minimal set-up required
• Highly economical source of nitrogen gas with low lifetime running costs
• The latest generation of compressors located in an insulated chamber reducing noise and vibration
• Service indication to allow planning of preventative maintenance
• Gas is supplied on demand so generator works to your schedule
• Wheels make it easy to manoeuvre generator around the lab
• 12 month comprehensive on-site warranty

Gas

• Gas Type: Nitrogen
• Max Gas Flow: 18L/min
• Max Output Pressure: 85psi/5.9bar
• Gas Type: Air
• Max Gas Flow: 26L/min
• Max Output Pressure: 110psi/7.6bar
• Gas Type: Air
• Max Gas Flow: 25L/min
• Max Output Pressure: 70psi/4.8bar

Site & installation

• Gas Outlets Fitting: 3x 1/4" BSPP
• Start Up Time: 1 hour
• Power Consumption: 2760 VA
• Voltage: 230 ± 10% V
• Frequency: 50 / 60 Hz
• Current: 12 A
• Heat Output: 9412
• Max Operating Temp: 35°C / 95°F
• Particles: <0.01 ‎μm
• Phthalates: none
• Suspended Liquids: none
• Accreditations: CSA, CE

Dimensions & weight

• Size (HxWxD) mm: 1322 x 600 x 850 mm
• Size (HxWxD) Inches: 52 x 23.6 x 33.5 inches
• Generator Weight: 186kg / 409.2lbs
