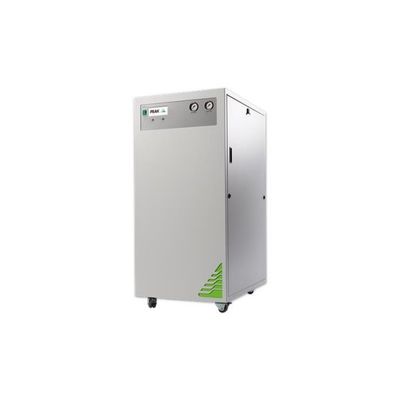

Genius - Model 3045 -Nitrogen and Dry Air Gas Generator

• Independent nitrogen and dry air gas supplies can be tailored for its application
• Higher flow 30 series generator designed for hungrier LC-MS applications
• Compressor based solution, no need for an external air suppy
• Highly economical source of nitrogen gas with low lifetime running costs
• Gas is supplied on demand so generator works to your schedule
• Service indication to allow planning of preventative maintenance
• Minimal set-up required
• The latest generation of compressors located in an insulated chamber reducing noise and vibration
• 12 month comprehensive on-site warranty

Gas

• Gas Type: Nitrogen
• Max Gas Flow: 32L/min
• Max Output Pressure: 80psi/5.5bar
• Gas Type: Air
• Max Gas Flow: 50L/min
• Max Output Pressure: 80psi/5.5bar

Site & installation

• Gas Outlets Fitting: 2 x 1/4” BSPP
• Start Up Time: 30 mins
• Power Consumption: Up to 2760 VA
• Voltage: 230 ± 10% V
• Frequency: 50 / 60 Hz
• Current: 12 A
• Heat Output: 9412 BTU
• Max Operating Temp: 35°C / 95°F
• Particles: <0.01µm
• Phthalates: None
• Suspended Liquids: None
• Accreditations: CSA, CE

Dimensions & weight

• Size (HxWxD) mm: 1322 x 600 x 850 mm
• Size (HxWxD) Inches: 52 x 23.6 x 33.5 inches
• Generator Weight: 189kg / 415.8lbs
