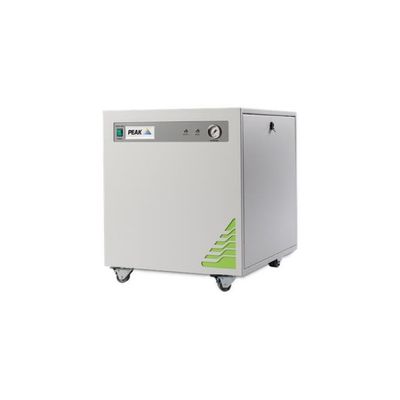

Genius - Model 1052 PSA -Nitrogen Gas Generator
For applications requiring heating and cooling nitrogen, the Genius 1052 PSA nitrogen generator contains highly effective Pressure Swing Adsorption and Carbon Molecular Sieve technologies to deliver a clean nitrogen gas supply. Developed for GCxGC modulators, this model can be used for a wide variety of applications requiring similar nitrogen outputs
.
Most popular related searches
noise and vibration service
nitrogen generator
PSA nitrogen generator
carbon molecular sieve
noise and vibration
molecular sieve
PSA generator
carbon adsorption
- Dual gas output delivers heating and cooling gas
- Innovative CMS and PSA technology ensures high performance
- Compressor based solution, no need for an external air supply
- Minimal set-up required
- Highly economical source of nitrogen gas with low lifetime running costs
- The latest generation of compressors located in an insulated chamber reducing noise and vibration
- Service indication to allow planning of preventative maintenance
- Gas is supplied on demand so generator works to your schedule
- Wheels make it easy to manoeuvre generator around the lab
- 12 month comprehensive on-site warranty
Gas
- Gas Type: Nitrogen
- Max Gas Flow: 20L/min
- Max Output Pressure: 30psi/2.1bar
- Gas Type: Nitrogen
- Max Gas Flow: 12L/min
- Max Output Pressure: 20psi/1.4bar
Site & installation
- Water Consumption: TBC
- Start Up Time: 30 mins
- Voltage: 230 ± 10%
- Frequency: 50 / 60 Hz
- Current: 7
- Noise Level: 54
- Accreditations: CSA, CE
Dimensions & weight
- Size (HxWxD) mm: 713 x 600 x 750 mm
- Size (HxWxD) Inches: 28.1 x 23.6 x 29.5 inches
- Generator Weight: 120kg / 264lbs
