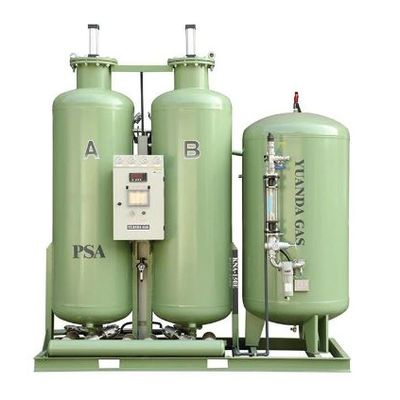

Yuanda - Nitrogen Gas Generator for Industrial use with GB/ASME Standard CE/ISO/SGS

As a leading manufacturer of  PSA N2/O2 gas generators and gas solutions for more than 25years, we have rich experience in PSA Gas generation and after-sale service. please refer to our catalog.Best performance with the limit first invest cost. save both money and energy running costs for your clients. More than a thousand clients use our machinery to produce high-quality gas for their production needs.

We are in a good position not only to supply you high quality/low-energy consumption machinery but also excellent after-sales service(365days/24 hours), our professional engineers will offer any technical support you need.

Our main products range:

• High performance air compressor
• PSA industry Oxygen generator
• PSA Industry Nitrogen generator
• PSA Medical Oxygen generator
• Ozone generator
• Refrigerated air dryer
• Adsorption air dryer
• Air filters with different filtering Spec.

High nitrogen purity
PSA nitrogen generator plants allow production of high-purity nitrogen from air, which membrane systems are unable to provide - up to 99.9995% nitrogen. This nitrogen purity may also be ensured by cryogenic systems, but they are considerably more complex and justified only by large consumption volumes. The nitrogen generators use CMS (carbon molecular sieve) technology to produce a continuous supply of ultra high purity nitrogen and are available with internal compressors or without.

Low operating costs
By substitution of out-of-date air separation plants nitrogen production savings largely exceed 50%.[citation needed]
The net cost of nitrogen produced by nitrogen generators is significantly less than the cost of bottled or liquefied nitrogen.
Nitrogen Generators Create Less Impact on the Environment
Generating nitrogen gas is a sustainable, environmentally friendly and energy efficient approach to providing pure, clean, dry nitrogen gas. Compared to the energy needed for a cryogenic air separation plant and the energy needed to transport the liquid nitrogen from the plant to the facility, generated nitrogen consumes less energy and creates far fewer greenhouse gases.

2.Why choose Yuanda PSA Nitrogen Generator
Specification：
1) Purity: 95-99.9999%
2) Capacity: 5-8000Nm3/h
3) Pressure out: 0-0.8Mpa (1.0~15.0MPa is also available)
4) Dew point: -45 degree-- -70

1. Imported pneumatic valves, using life is more than 3 million times;
2. Siemens PLC Intelligent program controller, easy and stable operation;
3. Specific inert ceramic balls diffusion technology makes airflow distribution evenly; improve the adsorption efficiency for adsorbent;
4. Self-force cylinder compress device (Patent No.: ZL-200820168079.9) to protect the using life of the carbon molecular sieve;
5. Original centrifugal vibration Filling (Patent No.: ZL-200820168078.4) effectively ensure the maximum filling volume.
