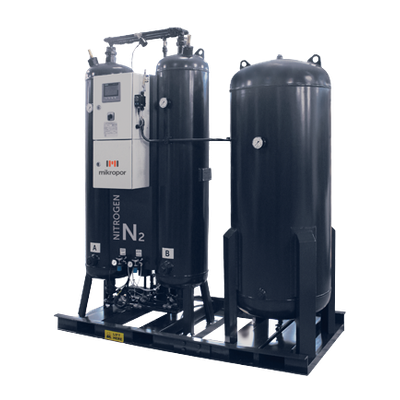

Mikropor - Model MNG Series -Nitrogen Generation Packages
Mikropor's MNG Series Nitrogen Generation Packages offer an efficient solution for producing high-quality nitrogen tailored to specific process requirements. This system eliminates the hassle of tank refills by generating nitrogen at the desired volume and purity. The package comes equipped with key components such as a Carbolescer Filter, Nitrogen Generator, Buffer Tank, and Final Filtration. For enhanced customization, options for purity measurement and flow control are available, ensuring that the nitrogen meets precise operational criteria. These features make it a practical choice for industries seeking reliable and precise nitrogen production capabilities.
Mikropor MNG Series Nitrogen Generation Packages enable the production of High Quality Nitrogen as your processes require. The nitrogen is generated at the volume and quality desired and remove the management concerns of refilling tanks and dewers as many are so accustomed to.
Mikropor MNG Series Nitrogen Generation Packages include Carbolescer Filter, Nitrogen Generator, Buffer Tank, Final Filtration and options for Purity Measurement and Flow Control.
The Nitrogen Generator is a Two-Bed Adsorber System
The Nitrogen Generator consists of two adsorber vessels f illed with CMS, a valve assembly, air filters, main pressure regulator, and a product receiver tank. Clean and dry air is directed to one of the adsorber beds where oxygen and water vapor is adsorbed faster than nitrogen in the pore structure of the CMS, thus increasing the nitrogen purity of the product gas stream to the desired level (95-99.999% as required by customer). This product flows out from the top of the adsorber bed, through the valve and into the product receiver at a pressure slightly below the feed air pressure.
- Metal industry
- Chemical industry
- Purge
- Plastic industry
- Charge nitrogen gas in tires
- Production process and storage of food
