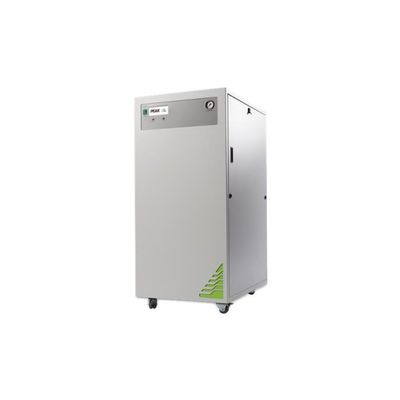

Genius - Model 3010 -Nitrogen Generator
Genius 30 series generators are engineered with an increased flow rate to assist LC-MS instruments with a requirement for a higher nitrogen flow rate or to supply nitrogen for two instruments. The Genius 3010 can deliver a single output of laboratory-grade nitrogen at flow rates of up to 64 liters per minute.
Higher flow 30 Series generator designed for hungrier LC-MS applications
Compressor based solution, no need for an external air supply
Highly economical source of nitrogen gas with low lifetime running costs
The latest generation of compressors located in an insulated chamber reducing noise and vibration
Gas is supplied on demand so generator works to your schedule
12 month comprehensive on-site warranty
Gas
- Gas Type: Nitrogen
- Max Gas Flow: 64L/min
- Max Output Pressure: 100psi/6.9bar
Site & installation
- Gas Outlets Fitting: 1x 1/4” BSPP
- Start Up Time: 30 mins
- Power Consumption: 2760 VA
- Voltage: 230 ± 10% VAC
- Frequency: 50 / 60 Hz
- Current: 12 A
- Heat Output: 9412 BTU
- Max Operating Temp: 35°C / 95°F
- Particles: <0.1μm
- Phthalates: None
- Suspended Liquids: None
- Accreditations: CSA, CE
Dimensions & weight
- Size (HxWxD) mm: 1322 x 600 x 850 mm
- Size (HxWxD) Inches: 52 x 23.6 x 33.5 inches
- Generator Weight: 168kg / 369.6lbs
