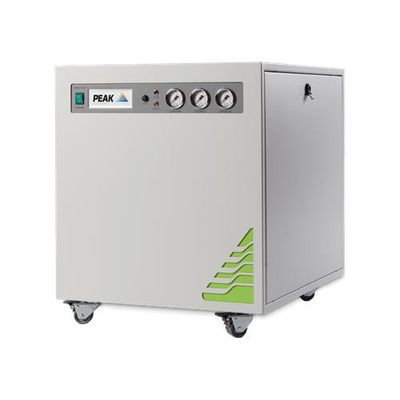

Genius - Model 1024 LC-MS -Nitrogen Generator

The Genius 1024 is built around the trusted and proven technology of Peak Scientific’s Genius series of generators. Designed mainly for LC-MS applications, these are self-contained systems featuring integrated compressors, delivering laboratory-grade nitrogen at various pressures and flow rates required by numerous instruments.

• Delivers nitrogen as curtain gas and dry air as source and exhaust gas at flow rates suitable for all single LC-MS/MS systems (excluding MD).
• Developed specifically for SCIEX LC-MS/MS systems
• Compressor based solution, no need for an external air supply
• Service indication to allow planning of preventative maintenance
• Minimal set-up required
• Highly economical source of nitrogen gas with low lifetime running costs
• Gas is supplied on demand so works to your schedule

Gas

• Gas Type: Nitrogen
• Max Gas Flow: 19L/min
• Max Output Pressure: 65psi/4.5bar
• Gas Type: Air
• Max Gas Flow: 26L/min
• Max Output Pressure: 100psi/6.9bar
• Gas Type: Air
• Max Gas Flow: 25L/min
• Max Output Pressure: 60psi/4.1bar

Site & installation

• Gas Outlets Fitting: 3 x 1/4" BSPP
• Start Up Time: 60 mins
• Power Consumption: 1610 VA
• Voltage: 230 ± 10% V
• Frequency: 50 / 60 Hz
• Current: 7 A
• Heat Output: 5,490 BTU/hr
• Max Operating Temp: 30°C / 86°F
• Particles: <0.1μm
• Phthalates: none
• Suspended Liquids: none
• Accreditations: CSA, FCC, CE

Dimensions & weight

• Size (HxWxD) mm: 713 x 600 x 750 mm
• Size (HxWxD) Inches: 28.1 x 23.6 x 29.5 inches
• Generator Weight: 108kg / 237.6lbs
