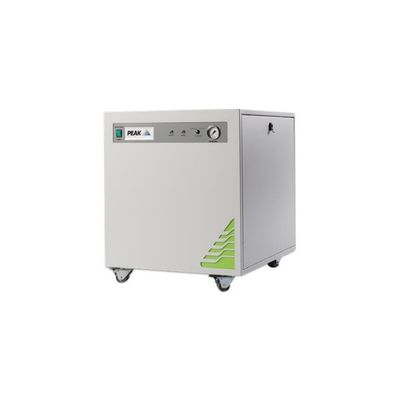

Genius - Model 1051 PSA -Nitrogen Generator

FromPEAK Scientific Instruments Ltd

SHARE

The Genius 1051 PSA nitrogen generator has been developed to provide nitrogen gas and dry air to the Shimadzu LC-MS-8045, 8050 or 8060 to labs with electrical supply of up to 230V. We`ve built the Genius 1051 with two internal air compressors as standard, this removes the reliance upon an in-house air supply The configuration allows users to change the flow ratio of nitrogen and dry air, such that the total flow is 25L/min, split between nitrogen and dry air.

Most popular related searches

nitrogen generator

noise and vibration service

PSA nitrogen generator

noise and vibration

laboratory supply

Innovative CMS and PSA technology ensures high performance
Compressor based solution, no need for an external air supply
Minimal set-up required
Highly economical source of nitrogen gas with low lifetime running costs
The latest generation of compressors located in an insulated chamber reducing noise and vibration
Service indication to allow planning of preventative maintenance
Gas is supplied on demand so generator works to your schedule
Wheels make it easy to manoeuvre generator around the lab
12 month comprehensive on-site warranty

Gas

Gas Type: Nitrogen
Max Gas Flow: 25L/min
Max Output Pressure: 110psi/7.6bar
Gas Type: Air
Max Gas Flow: 25L/min
Max Output Pressure: 100psi/6.9bar

Site & installation

Start Up Time: 30 mins
Voltage: 230 ± 10% VAC
Frequency: 50 / 60 Hz
Current: 7 Amps
Accreditations: CSA, CE

Dimensions & weight

Size (HxWxD) mm: 713 x 600 x 750 mm
Size (HxWxD) Inches: 28.1 x 23.6 x 29.5 inches
Generator Weight: 118kg / 259.6lbs
