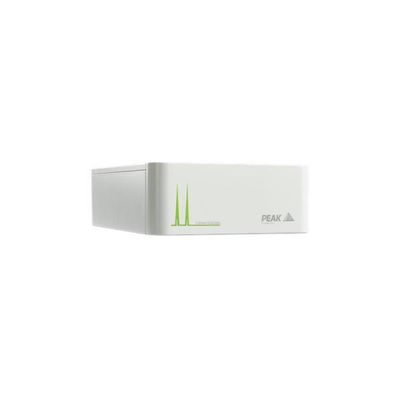

Peak Scientific Corona - Model 1010 -Nitrogen Generator
Our Corona 1010 has been engineered to meet the specifications of the Thermo Scientific Corona Veo Charged Aerosol Detector. This system can be purchased as a single nitrogen unit for laboratories with an external air supply or with a stackable air compressor for laboratories without an external air supply. The Corona system is also suitable for a variety of other applications, requiring up to 5 L/min nitrogen for LC, HPLC or UHPLC.
Most popular related searches
nitrogen generator
laboratory grade nitrogen
air intake
laboratory nitrogen gas
aerosol detector
laboratory air
laboratory gas supply
membrane testing
UHPLC
HPLC
- Suitable for applications requiring high purity nitrogen
- Available with or without an external compressor
- Dedicated solution for Thermo Scientific`s Corona and Vanquish instruments
- Tried and tested membrane technology delivers laboratory-grade nitrogen
- Gas is supplied on demand so generator works to your schedule 12 month comprehensive on-site warranty
Gas
- Gas Type: Nitrogen
- Max Gas Flow: 5L/min
- Max Output Pressure: 80psi/5.5bar
- Max Purity: >98%
Site & installation
- Min Inlet Pressure: 110psi/7.6bar
- Max Inlet Pressure: 130psi/9bar
- Min Air Inlet Flow: 30
- Min Inlet Air Quality: ISO 8753-1:2010 Class 1.4.1
- Start Up Time: 5 mins
- Power Consumption: up to 23 VA
- Voltage: 100- 230 V
- Frequency: 50 / 60
- Current: 0.1 A
- Heat Output: up to 78 BTU
- Max Operating Temp: 35°C / 95°F
- Particles: <0.1μm
- Phthalates: none
- Suspended Liquids: none
- Noise Level: 0
- Accreditations: CE, FCC, CSA
Dimensions & weight
- Size (HxWxD) mm: 156 x 417 x 540 mm
- Size (HxWxD) Inches: 6.1 x 16.4 x 21.3 inches
- Generator Weight: 12kg / 26.4lbs
