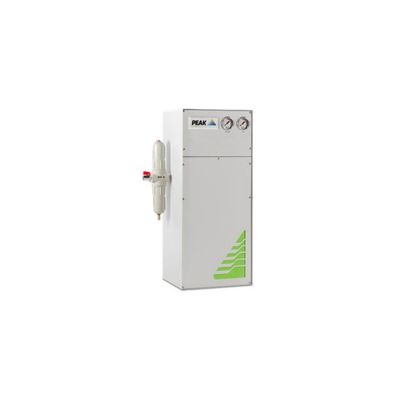

Infinity - Model 1051 -Nitrogen Generator
Designed and engineered as an on-site, compressorless nitrogen generation solution tailored for the Shimadzu LCMS-8045, 8050 or 8060, the Infinity 1051 delivers one output of nitrogen and another of dry air to laboratories who already have an existing air supply.
Most popular related searches
- Both a nitrogen and dry air output suitable for the Shimadzu LCMS-8045/50/60 and instruments requiring similar specifications
- 24/7 operation at optimum performance if required
- Gas is supplied on demand so generator works to your schedule
- Few moving parts means little maintenance required and ensures long life of the generator
- Minimal set-up required
- Completely silent in operation
- 12 month comprehensive on-site warranty
Gas
- Gas Type: Nitrogen
- Min Gas Flow: 0
- Max Gas Flow: 25
- Max Output Pressure: 100psi/6.9bar
- Gas Type: Air
- Max Gas Flow: 25L/min
- Max Output Pressure: 110psi/7.6bar
Site & installation
- Min Inlet Pressure: 120psi/8.3bar
- Max Inlet Pressure: 145psi/10bar
- Min Air Inlet Flow: 110
- Min Inlet Air Quality: ISO8573 - 1:2010 Class 1.4.1
- Start Up Time: 60 mins
- Power Consumption: none
- Voltage: N/A
- Frequency: N/A
- Current: N/A
- Heat Output: none
- Max Operating Temp: 30°C / 86°F
- Particles: <0.01 μm
- Phthalates: none
- Suspended Liquids: none
- Accreditations: CE
Dimensions & weight
- Size (HxWxD) mm: 730 x 424 x 250 mm
- Size (HxWxD) Inches: 28.7 x 16.7 x 9.8 inches
- Generator Weight: 21kg / 46.2lbs
