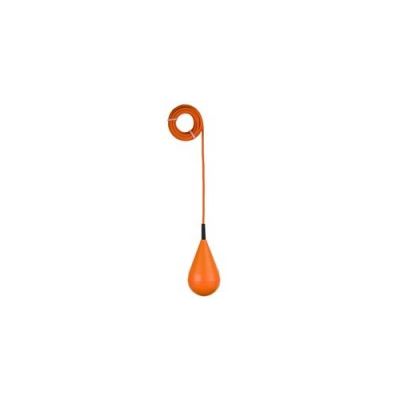

NIVA - Model MS 1 -Water Level Controller

The NIVA level controller MS 1 is engineered especially for use in sewage works and pumping stations in liquids heavily charged with solid matter such as raw sewage etc. Thanks to the good chemical and thermal properties our level controllers are resistant to lees, uric acid, fecal sewage water, oils, petrol, diesel oil, emulsions, alcohol, fruit acids and many more chemicals. For use at temperatures up to 80 °C (176 °F). The MS 1 has been submitted for UL certification. Optionally the level controller MS 1 is available with EX-certificate in accordance with EC directive 94 /9 (ATEX 95).

• Specific weight: 0,95 - 1,05 or according to specification
• Max. temperature: 80°C
• Breaking capacity: 1 - 100 mA / 4V - 5A / 250V*
• Switch point: 10°
• Protective system: IP 68 / 2 bar
• Equipment group: ||
• Cable cross section: 3 x 0,75 mm²
• Height / diameter: 180 / 100 mm
• Cable lengths: 5 / 10 / 20 m
• Housing quality: Polypropylen (PP)
• Housing Colour: Orange
• Cable quality: TPK / PVC
• Cable colour: Orange
