NOAH - Model DSP / DEP -Flood Protection
Innovative flood protection: NOAH DSP embankment stabilisingpanels and NOAH DEP embankment raising panels. In the face of global warming, many public authorities are already asking which river banks need to be reconstructed or moved farther back, and which areas will need flood protection where there is none at the moment. One thing is certain: embankments across Europe need to be repaired to ensure that adequate flood protection is in place. New embankments incur significant costs and also consume large areas of land. Even if suitable space is available, disputes with land owners are usually inevitable.
No chance for roots – or beavers
NOAH DSP patented embankment stabilising panels prevent water from seeping through existing river banks and dykes. They minimise disruption to landscapes and are available at moderate cost. If the height has to be increased to prevent water from flooding over an embankment, this is achieved with the relevant NOAH DEP embankment raising panels. Incidentally, all these panels not only stop water in its tracks, but also roots or attacksby beavers and other rodents.
Thanks to these measures, embankments and dykes can be prepared to face the challenge of future weather conditions.
The advantages of patented NOAH DSP embankment stabilising and NOAH DEP embankment raising panels at a glance:
- Can be installed with a minimum of vibration
- Rapid installation
- Only minimum disruption to the natural surroundings
- Low costs
- Highly waterproof and extremely durable
- Practically no ageing or corrosion if correctly stored (DEP)
- Environmentally-friendly, food-safe and suitable for drinking water
- `Lotus effect` for easy cleaning

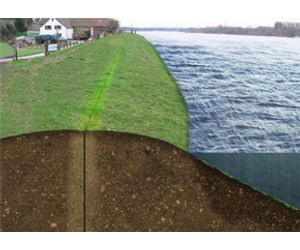

A narrow trench is made in the embankment to accommodate thestabilising panels. This is a cutting technique which, unlike pile driving, minimises vibration and does not endanger the stability of the embankment as a whole or nearby buildings. The soil removed by this process is used to fill the trench on both sides of the panels after they have been inserted, and is then compacted using a special technique.
If additional help is required, embankment raising panels can simply be attached on top of the stabilising panels.
- Dimensions of NOAH DSP
- Thickness: min. 3 mm
- Installed depth: as required (up to 8 metres)
Durability: 100 years according to Bundesamt fürMaterialforschung (Federal Institute for Materials Research and Testing)
- Dimensions of NOAH DEP
- Width: 1,400 – 4,500 mm
- Height: 250 – 1,000 mm
