NOAH - Model VFS -Laying/Cutting System
There are a number of other uses for our ditch cutter, in addition to our root protection system:http://www.noah-systems.de/eng/prods_wss-vfs.htm
Most popular related searches
waste disposal site
ditch cutter
cutting system
drainage pipe
waste disposal
waste site
construction site waste
solar waste
ditching
General civil engineering
- Drainage pipes
- Cable trenches
- Utilities trenches
- Trenches for geothermal energy cables
- Trenches for Berlin type pit linings
Power stations and solar panel units
- Cable trenches for feeder cables
- Linking trenches at solar parks
Building waste disposal sites
- Trenches for loop wiring systems etc.
We have an enormous advantage over the conventional construction of cable trenches (with excavators etc.).
An excavator takes approx. 3.5 hours for a trench that is 1 m deep, 0.30 m wide and 100 m long. This means daily output of approx. 300 m.
Our trench cutter offers daily output of approx. 1500 – 2000 m – depending on the type of soil. This is 5 – 6.5 times more than an excavator.
- The basic unit is a Fendt 927 tractor with 270 hp
- The cutting wheel cuts a trench that is 30 cm wide and up to 1.30 m deep for soil classes 1 – 6
- Carbide-tipped circular cutter on the cutting wheel
- 30 kN force in vibrating plate
- 25 cm wide vibrating plate
- The cutting wheel can be moved to the right or left away from the centre

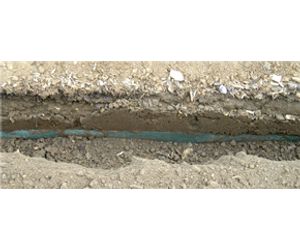

- Depending on the task, the discharged material is stored at the side or fed back into the trench and compressed
- Cutting/inserting/compressing – all in one working operation
