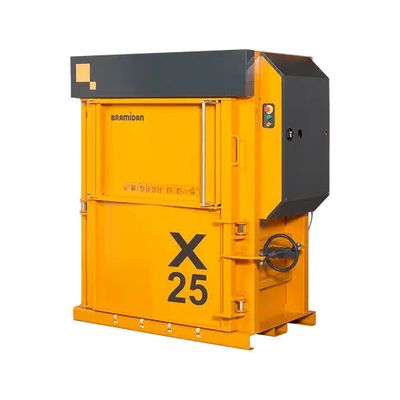

Greenbank - Model X25 -Noiseless Vertical Hydraulic Baler
The X25 is a vertical hydraulic baler is equipped with cross cylinders. This gives you stable compression and a superior press force making it highly sought after. This machine is highly beneficial when space is an issue. With a low overall height working in combination with a long stroke, a high bale weight can be achieved. The X25 baler is designed with easy servicing in mind. For example, the positioning of the hydraulic unit mounted below the control panel on the side of the machine makes servicing a straightforward process.
- Press Force: 25T
- Waste Volume: Medium
- Feed Opening: WxH (mm) 1090 x 530
- Bale Size: WxDxH (mm) 1200 x 800 x 800
- Bale Weight (KG) : 200-350
- Waste Types: Cardboard, Plastic, Foil, Paper, PET Bottles, Alu and Tin Cans, Plastic Hard, Textile, EP
Due to a unique hydraulic system this particular model is completely noiseless. The door is safe and steady to open, operated by a strong threaded spindle.Cardboard bales are produced between 200 and 300kg. In contrast, plastic bales weigh slightly more at 250-350kg. The total dimensions of this machine in mm is 1745 x 1260 x 1995.
How do I use a vertical baler?
We’ve put together a handy video showing you the full process below, click launch video.
- Recyclables such as plastic or cardboard are hand fed through until realistically full.
- A full-light indicator tells you when the chamber is full.
- Tie off the bale using strapping or wire and eject the finished bale.
- Remove the bale and store until collection from your waste processor.
- Low Height
- Does not compromise superior press force
- Reduce Collections
- Bales are compact keeping collections to a minimum
- Key Features
- Noiseless - Due to a unique hydraulic system
- Safe and steady opening of door - Operated by a strong threaded spindle
- Easy installation - Very low overall height
- Bale weight cardboard (kg): 200-300
- Bale weight plastic foil (kg): 250-350
- Bale size WxDxH (mm): 1200 x 800 x 800
- Press force (t): 25
- Power supply: 3x400V 50Hz 16A
- Motor (kW): 4.0
- Noise Level (dB): 59-60
- Cycle time avg. (sec): 23
- Dimensions WxDxH (mm): 1745 x 1255 x 1995
- Machine weight (kg): 1410
- Feed opening WxH (mm): 1090 x 530
- Filling height (mm): 955
- Chamber height (mm): 1380
- Stroke (mm): 950
- Number of ties: 4
- Type of tying: Twine / Steel wire
- Full bale light: Yes
- Bale eject: Automatic
