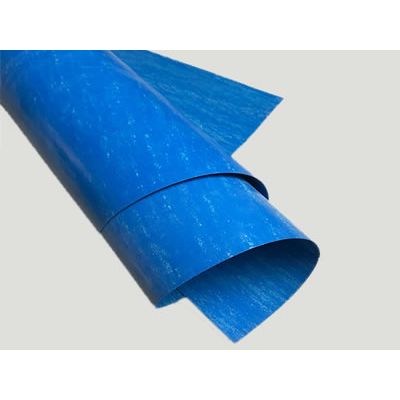

Bright Pearl - Model NXB & NNY -Non-Asbestos Jointing Sheet
Non-Asbestos Jointing Sheet are made of the frame materials including aramid fiber and synthetic mineral fiber after special proportioning with natural rubber or oil-resistant rubber binders and adding other functional additives and compression molding it.
Non-asbestos jointing sheet series include: NXB200, NXB300, NXB350
Uses: Substitution of corresponding models of asbestos jointing sheet ,Used for the equipment in water,steam,etc.and used as sealing material in the joints of pipeline
Working pressure : 1.5~8.0 MPa ,Working temperature : 200 ~350?
Oil-resistance non-asbestos jointing sheet series include: NNY150, NNY250, NNY300, NNY350
Uses: Substitution of corresponding models of asbestos jointing sheet , Mainly used as the aviation liquid the motive`s kerosene, lubricant, the fuel oil and cold air system to join together the seal completely of place the sealing gasket material.
- Working pressure : 7.0~12 MPa ,Working temperature : 150 ~350?
- Available Sizes: Thickness: 0.5 to 5mm
- 1500 x 4500mm, 1500 x 1500mm
- The other size is optional or according to the requirements of customers.
- At the same time, steel wire net inserted (coated graphite) is available.
- Packing: in wooden pallet of about 1000 kgs, 2000kgs net each.

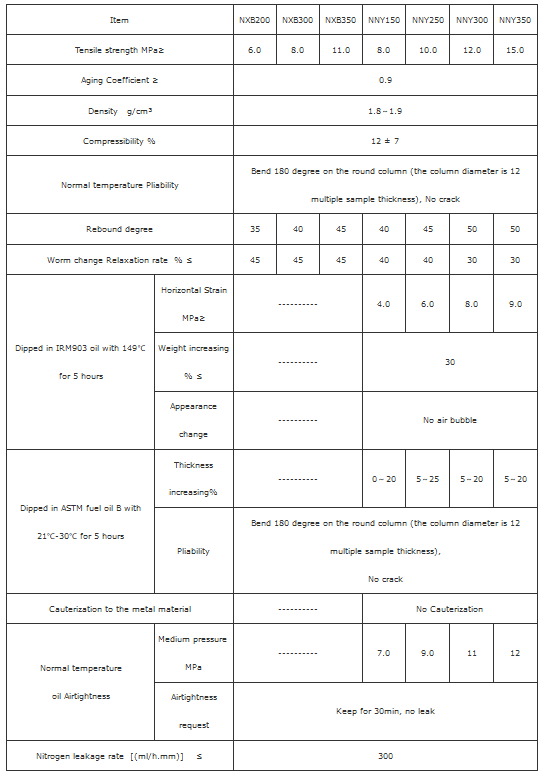

Non-Asbesto jointing Sheet Date Sheet GB/T3985-2008
