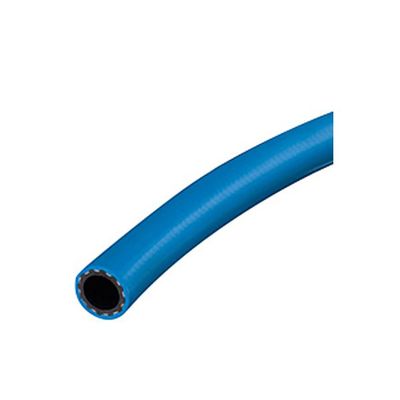

Kuriyama BRAID-Lock - Model BL-04BU -Non-Conductive Braided Construction 300 PSI Push-On Hose
General Applications: Air Tools, Low Pressure Pneumatic and Hydraulic Systems, Lubricating oils/diesel fuel, Robotic Welders in assembly where weld spatter is present, Water lines in plastic molding industry.
Most popular related searches
Construction
- Cover : PVC/Nitrile blend, RMA Class A oil resistant and MSHA approved.
- Reinforcement : Braided Textile - Optimum Angle for Push-On Fitting Retention
- Tube : Black Nitrile - RMA Class A oil resistance
Service Temperature Range
- Service Temperature [Min] : -30 ºF -34 ºC
- Service Temperature [Max] : 180 ºF 82 ºC
Features and Advantages
- Non-Conductive - Tested to exceed minimum electrical resistance greater than one (1) megohm per inch of hose length at 1000 volts DC.
- MSHA Approved Flame Resistant Cover.
- Superior End Retention- no clamps or ferrules required when using Push-On fittings - ends remain attached at 4:1 burst pressure.
- Easy to couple - no tools required.
- RMA Class "A" tube and cover oil resistance.
- Wide range of applications where performance and ease of assembly are demanded.
Branding
- Branding : BRAID LOCK™ NON CONDUCTIVE 300 PSI (SIZE) ID FLAME RESISTANT MSHA
Packaging
- Packaging : 1/4", 3/8" and 1/2" - 500 ft., 5/8", 3/4" and 1" - 200 ft. On plastic reels, max. 3 pcs.
Nominal Specifications
- Color : Blue
- ID : 1/4 in
- OD : 0.48 in
- Working Pressure : 300 psi
- Reel Length : 500 ft
- Weight : 0.09 lbs/ft
Specifications
- Brand : BRAID-LOCK™
- Type : Push-On Hose
- Style : Braided
- Performance : Non-Conductive Braided Construction
- Oil Resistance : RMA - Class A
