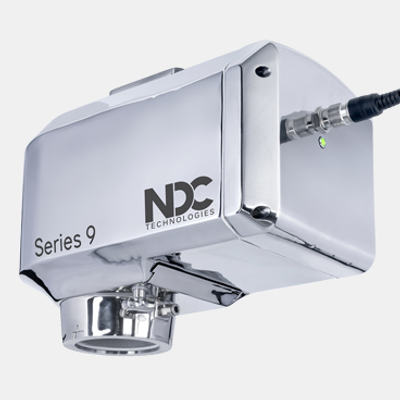

Nordson - Model 9 Series -Non-Contact Industrial Gauge

• Benefit from Future-Proof Platform – Series 9 delivers the performance and productivity you need now – and for the challenges yet to come – to maximize your process performance and KPIs
• Measure the Full-Color Spectrum - in a wide range of standard scales, as well as color tolerance and difference outputs, for CIE (L*, a*, b*), RGB, CIE LCh (L*, C*, h), L`IE* & L`IEcmc and Degree of Roast (DOR)
• Perform Moisture Measurements Across Industrial Applications – confidently perform moisture measurements in applications, such as powders, aggregates, flakes, granules, slurries, paste and more

• Optimize Process and Product Quality – stable, ultra-accurate measurements coupled with unsurpassed performance maximizes the ability to operate your process at peak efficiency and deliver the highest quality products
• Increase Productivity with Simple Operation – the user-friendly format requires no special operator skills or expert knowledge, yet it allows expert users to make the most of the enhanced interaction capabilities

• Scale Our Solution to Meet Your Plant Needs – the flexible building-block architecture coupled with intuitive functionality, advanced process connectivity and adaptable integration allows you to scale NDC Technologies` gauging system to meet current and future site requirements
• Realize the Lowest Cost of Ownership – innovative intelligence, along with easy operation and maintenance, enables you to realize immediate and long-term value over the lifetime of operation

The Series 9 uses precision near infrared (NIR) technology to make a continuous, non-contact measurements of moisture content.

Series 9 Measurement Principle

The Series 9 works on the principle that constituents such as moisture (water) within a product discretely absorb certain wavelengths of infrared light. By emitting light at these wavelengths onto the product and then capturing and measuring the reflected unabsorbed light on a light-sensitive detector, the Series 9 computes the level of the moisture within the product. Unlike other technologies, the Series 9 spends 100% of its operation measuring the product.

Using high-speed signal processing, the patented Series 9 “light engine” delivers the highest resolution, on-line NIR measurements available today. This robust gauge is unaffected by changes in process conditions such as particle size variation, product height variation, product temperature variation, ambient lighting and relative humidity changes.

Connectivity and Interfacing to Enhance Process Insight and Control

The Series 9 is used in conjunction with one or more peripheral devices to facilitate data display, networking and process connectivity. It can be incorporated conveniently into closed-loop control systems using its digital and analog connectivity options.

Data can be displayed locally for operators using the Series 9 Operator Terminal or Gauge Control Interface. A Gauge Control Port allows multiple gauges to be networked (daisy chained). The Power Hub provides power to a single gauge and enables convenient networked arrangements of multiple Series 9 gauges and devices. The Series 9 gauge and peripheral devices are Ethernet enabled and run on 24V DC power.

A wireless communication option allows operators to remotely view gauge, process and sampling information.
