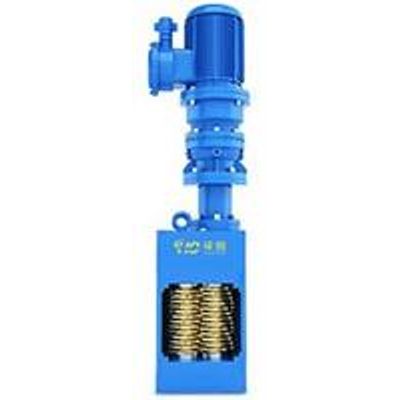

Huanchuang - Model HCC-N80 -Non Drum Channel Wastewater Grinder

Materials of Construction

• Motor: Customized, multiple power options
• Reducer: Planet gear reducer, good ability to against the load impact
• Cutter and spacer: heat-treated alloy steel 4130 with surface harden evenly.
• The hardness is not less than 45~50HRC
• Shaft: heat-treated alloy steel 4140
• Mechanicals Seals: Tungsten Carbide faces
• Housings: Ductile cast iron ASTMA 536
• Frame: Stainless steel(304,316)

 Mechanical Characteristic

Ease and Flexibility of Installation

•  Adapts to most existing pipelines with little or no modification

Mechanical Seals

• Pressure capability up to 6.3kg/cm2;
• No seal flush required and no packing gland to adjust;

High-Flow Side Rails

• Increases flow capacity and decreases head loss
• Directs solids into the cutting chamber

Dual Shaft Design

• Low-speed, high torque grinders handle rags, rocks, wood, clothing, plastics and other debris
• Capable of handling a wider variety of solids than single shafted machine

Cutter Options

• Customized cutters with various tooth configurations to meet special application

Low Profile Bottom end housing

• More of the cutting chamber is utilized during low flow

Top Fastening Devices

• Easy to fasten without lifting out of the channel

Control System Function

• PLC Control Cabinet with liquid crystal display, real time monitoring loading
• MODBUS standard field bus Communication interface and remote controllable
• Time adjustment, runtime and failure records query
• Automatic Reversal Function, time and times setting of reversal
• Leakage, Over Capacity, Overheating, Short Out and Lack of phase protection functions
• Authority setting function
