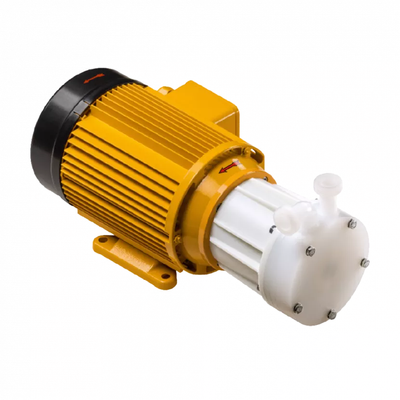

Schmitt - Model P Series -Non-Metallic Horizontal Centrifugal Pumps
The P series can pump media up to a temperature of 60 °C. Under the designation P-EX, we also offer an ATEX-certified version for use in ATEX zone 2. Thanks to magnetic coupling, these pumps operate contact-free and wear-free. This is ideal for toxic, environmentally hazardous or aggressive media. They are designed for high pressures and can be controlled very precisely.
Most popular related searches
horizontal centrifugal pumping
horizontal centrifugal pump
centrifugal pumping
centrifugal pump
demineralized water
carbon fiber
PVDF microfiltration
explosive atmosphere
spark arrester
ultrapure water
- Hermetically sealed and absolutely leak-free (no mechanical seal)
- Powerful magnetic drive with neodymium magnets
- Practically maintenance-free in normal operation due to extra-large slide bearings
- Runs in partial dry run conditions due to large diameter PTFE slide bearings – design without impeller shaft Features
- All wet parts made of high-quality, corrosion-resistant plastics (PVDF or PP)
- Threaded connections (ISO 228-1) as standard
- Universally applicable, low-noise and compact close-coupled design
- Approved for use in explosive atmospheres ATEX zones 2
- Corrosion-resistant paint finish
- All stainless steel screws in 1.4571 (316Ti)
- FDA-certified materials (PVDF versions)
Delivery of acids, bases, lye or other corrosive, harmful or toxic liquids in such applications, where even small leakages are not acceptable and a hermetically sealed pump is required. Delivery of highly pure and sensitive liquids, where contamination must absolutely be avoided.
For example in the following applications:
- Plating and surface coating
- Semiconductor technology and solar cell production
- PCB and electronics manufacturing
- Wastewater and fresh water treatment
- Laboratory equipment and medical technology
- Emission controls and gas scrubbers
- Battery production and energy storage
- High-purity applications, demineralized water, ultrapure water
Materials and Components:
- Parts in contact with the medium are made solid of PVDF, (up to +95° C), or PP (up to +80° C)
- Housing seal alternatively made of FKM, EPDM, FEP or Kalrez®
- Slide bearings made of the materials PTFE/ceramic or SiC / SiC
- High-quality electric motors made in Germany
Material details:
- PVDF: Polyvinylidene Fluoride, Pure, milky white, not colored (up to +95° C)
- PP: Polypropylene, Fiber glass-reinforced, gray (up to +80° C)
- FKM: Viton® quality, -20...+200° C
- EPDM: Ethylene propylene diene M-class rubber, Food-safe (FDA, KTW, WRC), -40...+160° C
- FEP: Fluorinated ethylene propylene with Viton® or silicone core, -60…+200° C
- Kalrez ®: High performance elastomere up to +315° C
- PTFE: Pure Teflon®, fiber glass or carbon fiber reinforced
- SiC: Silicon carbide, without free silicon, sintered
- Ceramic: Highly pure Al2O3-ceramic 99.7%
Motor Details
- Standard Motors (stock items):
- Three-phase motors: 230/400 V 3ph, 50 Hz, IP 55, insulation-class F or 277/480 V 60 Hz also with PTC thermistor
- Alternating current motors: 230 V 1ph, 50/60 Hz, IP 55, Insulation class F
- Three-phase motors: spark arrested for combustible environments, explosion proof: EEx e II T3
- Special design models (available):
- Three-phase motors, explosion proof, flameproof enclosure, EEx de II CT4
- Special voltages and frequencies
- 2-, 4- and 8-pole
- UL and CSA execution
- Special protection types (e.g. IP 65)
- High temperature designs
- Special insulation classes (e.g. tropical insulations)
- Multi area voltage (e.g. 220-290 / 380-500 V 50 Hz; 220-332 / 380-575 V 60 Hz.)
- Additional designs upon request
Characteristics
Pump housing / wet end: PVDF, PP
Elastomers: FKM, EPDM, FEP, FFKM
Material of slide bearings: PTFE / Al2O3, SiC / SIC
Operation conditions
- Max. flow rate: up to 4.5 m³/h
- Max. delivery head: up to 45 m
- Liquid temperature: 0 to 60°C (PVDF, PP)
- Ambient temperature: -10 to 40°C, higher temperatures on request
- Pumps can be adapted to high-density liquids (up to 1.3)
Motors
Standard motors (available from stock)
- Three-phase motors: D230 / Y400 V-3ph @ 50 Hz, D265 / Y460 V-3ph @ 60 Hz, IP 55, Ins.-Cl. F, also with PTC
- All motors from 0.75 kW have energy efficiency class IE3
- Single-phase motors (up to 1.1 kW: 230 V-1ph, 50 / 60 Hz, IP 55, Isol.-Kl. F)
- ATEX-certified motors (temperature rating T3)
Special motors (available on request, for example)
- Special voltages and frequencies · ATEX-certified motors (temperature rating T4)
- Three-phase motors with integrated drive / frequency converter
- Four-pole motors with 1450 rpm @ 50 Hz / 1650 rpm @ 60 Hz
- UL- and CSA-certified motors
- Special types of protection, e.g. IP 65
- Special insulation classes, e.g. tropical insulation
- Multi-voltage, e.g. D220–290 / Y380–500 V, 50 Hz; D220–332 / Y380–575 V, 60 Hz
- Direct-current motors (DC or BLDC)
