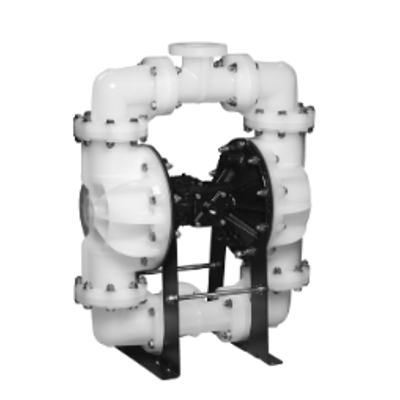

Blagdon - Model B75 -Non-Metallic Pump
FromBlagdon Pump
Simple construction, easy to maintain. Capable of handling high-S.G. and viscous fluids. Pressures to 7 bar (102 PSI). Flow rates up to 901 litres/minute (238 gal/min). Adjustable flanged connections. Reliable, proven pneumatic air valve
Most popular related searches
- Maximum Delivery: 901 ltrs/min (238 gal/min)
- Max. Working Pressure: 7 bar (102 PSI)
- Max. Solid Particle Size: 18 mm. (0.71″)
- Air Inlet: 3/4″ NPT
- Temperature Limits: Determined by Elastomers
- Suction Lift (Dry): 5.1 m. (16.8′ feet)
- Fluid Inlet / Outlet: 3″ ANSI Flange
- Installation: Surface Mounted
- Accessories Included: Exhaust Air Silencer
- Shipping Weight: 105 kg. (231.5 lbs) Polypropylene 143 kg. (315.3 lbs) PVDF
- Shipping Dimensions: 558 x 965 x 1219 mm 22″ x 38″ x 48″
