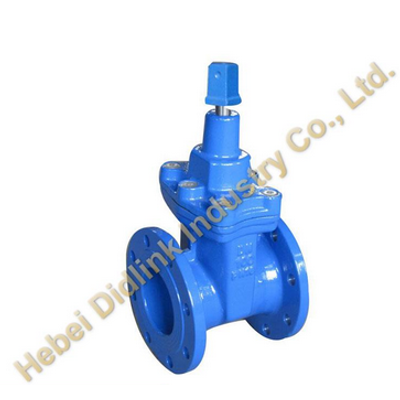

DID Link - Model 8 -Non Return Gate Valve
Name: DIN non return gate valve, 8 gate valve dimensions. Design confirms: DIN3352. Flanges drilled confirms: DIN2501/EN1092-2 PN10/16/25. Tightness check: API 598/ISO 5208/EN12226-1. Face-to-face conform: DIN3352/DIN3202 F4(IS05752 Series14)/EN558-1 Series14. Normal pressure: 1.6MPa.
Most popular related searches
- Shell test pressure: 2.4Mpa
- Seal test prressure: 176Mpa
- Suitable medium: water and neutral liquid
- Working temperature: -20 to 120 centigrade. (EPDM: -20 to 120, NBR: -10 to 80)
- Body/Bonnet/Disc: Cast iron/ductile iron/CI/DI/GG25/GGG40/GGG50/HT200/QT450
- Seat: EPDM/NBR
- Stem: Stainless steel, brass, bronze, steel with zinc
- Gland follower: Brass/ductile iron
