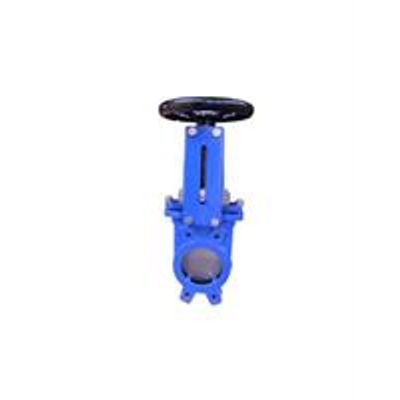

Guanli Valve - Model GKN073 -Non Rising Stem Knife Gate Valve
Type: Uni directional Non Rising Stem. Flange Standard:EN1092 PN10. Valve Body:Ductile iron GGG40+Epoxy Powder Coating, Stainless Steel. Knife Material:SS304/SS316/SS2205. Stem Material:SS420/F304/F316. Seat Type:EPDM/NBR/PTFE/Metal to Metal. Operation: Handwheel, Gear, Air actuated, Electric actuated.
Most popular related searches
knife gate valve
gate valve
knife gate
non rising stem gate valve
rising stem gate valve
electric actuator
non rising gate valve
epoxy coating
Connection Standard:
- EN1092 PN10
- JIS 10K
- Other on request.
Max Working pressure:
- DN50~DN250: 10Bar
- DN300~DN450:7Bar
- DN500~DN600:4Bar
- DN700-DN900:2Bar
- DN1000-DN1200:1Bar
