Norcar - Model a6026 -Versatile Working Machine
FromNorcar Ab

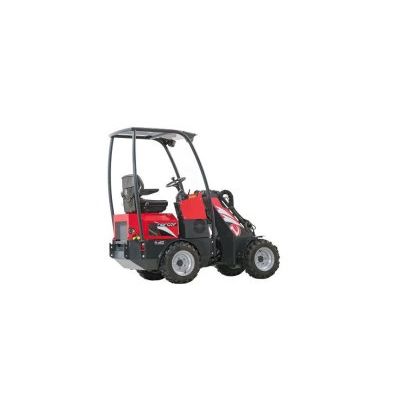

Norcar a6026 is essentially a versatile working machine. The stable extension boom allows high-lift tasks to be completed easily and safely. The lifting height with pallet forks is 2.8 meters. The lifting boom is simply and comfortably controlled using a joystick with an electric switch to control extension and auxiliary hydraulics.
Most popular related searches
cooling system
safety system
tipping bucket
level gauge
safe lifting
electrical safety system
hydraulic lifting
floating boom
electrical safety
An adjustable steering wheel and a comfortable suspension seat provides a restful ride. The drive system with a foot throttle and direction pedal allows the loader to be controlled with incredible precision, even with demanding equipment and terrain. Norcar a6026 is an effective tool where jobs vary between loading trucks, shoveling snow, and moving soil.
- Engine
- Make : Kubota
- Model : 1105
- Cylinders : 3
- Fuel type : Diesel
- Cylinder volume cm3 : 1123
- Cooling system : Fluid
- Power :
- SAE, gross power kW/hp : 19,4/26,4
- Max gross torque Nm : 72
- At engine speed r/min : 2200
- Max engine speed without load r/min : 3000
- Electrical system :
- Battery V-Ah : 12-53
- Generator A : 40
- Service volumes :
- Cooling system l : 6
- Engine oil l : 5
- Fuel tank l : 20
- Hydraulic tank l : 50
- Hydraulic system total volume l : 55
- Performance :
- Lifting power hydraulic kg : 1150
- Breakout force 50 cm kg : 960
- Tipping load, straight kg : 960
- Tipping load, articulated kg : 770
- Operating weight kg : 1320
- Drive speed km/h : 0-11
- Pulling force kg : 950
- Hydraulic system :
- Working hydraulics l/min : 24
- System pressure bar : 240
- Drivetrain hydraulics l/min : 63
- Drivetrain max system pressure bar : 350
- Cycle times :
- Raising boom s : 3,7
- Lowering boom s : 2,2
- Folding in bucket s : 2,6
- Tipping bucket s : 1,6
- Steering wheel rotations L/R rev : 3/4
- Tires :
- Dimension : 23x8,5-12IN
- Roll bar ROPS/FOPS, seatbelt
- Working lights, front
- Electrically maneuvered parking brake/safety system
- Float on the lifting boom
- Hand throttle/Foot throttle
- Engine speed and hour meter, engine heat and fuel level gauges
- Suspension seat with armrests
- Adjustable steering column
