Normarc - Model 7710 -NAV Analyzer

SHARE

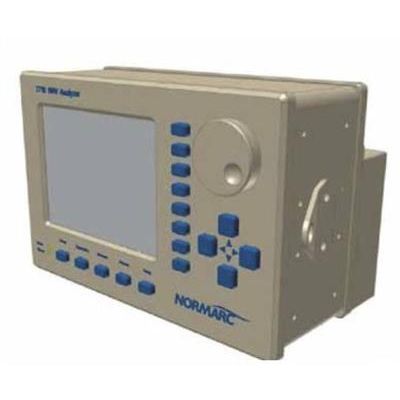

The NORMARC 7710 NAV Analyzer is used to adjust, verify and record parameters of ILS (Localizer, Glide Path, Marker Beacon) and VOR ground systems according to ICAO 8071. The NAV Analyzer`s functionality substitutes instruments like ILS/VOR receivers, modulation meters and frequency counters. It incorporates all ILS and VOR channels selectable without any tuning or equipment changes.

Most popular related searches
marker beacon
glide path
beacon
  1. Low weight and small size
  2. More than 6 hours operation from fully charged condition
  3. Charging from 10.8- 30V DC source directly or 110-240V using external adaptor
  4. Automatic tuning to the input signal
  5. User named measuring points/sequences and selectable measurement intervals/rates
  6. Auxiliary connector for external event button
  7. Dual-band antenna
  8. Performance analyzes of ILS Localizer, Glide Path, Marker Beacon and VOR
  9. Supports CAT III ILS Localizer in accordance with ICAO 8071
  10. All controls and measurements available through external interfaces
  11. RS-232 or Ethernet interface for data access via personal computer
  12. Data storage capacity for minimum 1 hour of continuous measurements
