Nova - Model N-Eco -Pellet Production Plant
Pellet production plant with the N-Eco Pellet mill are the ideal solution to turn your problem into an economic resource. Medium-sized carpentries and sawmills, or a complete pellet production plant, the N-ECO plant provide an ideal solution for automatic and efficient production from both dry and wet materials. Complete with all components necessary to convert your waste into pellets, N-ECO plant are customized both in layout and technical solution. The N-ECO also enables the pelletization of biomass and other non-wood materials.
Most popular related searches
pellet plant
advanced safety system
pelletizer
pelletizing
pellet mill
dust extraction
screw feeder
safety system
level sensor
screw conveyor

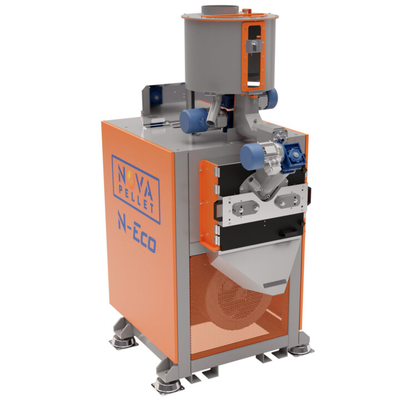

The N-ECO pellet mill by NovaPellet is the ideal choice for those who wish to reduce pellet production costs without compromising quality. Thanks to innovative design, the N-ECO optimizes the relationship between absorbed kW and hourly pellet production, ensuring superior energy efficiency and low operating costs. This advanced technology stems from the development of next-generation machinery designed to offer customers tangible economic advantages, including significant energy savings, reduced maintenance costs and time, as well as the production of high-quality pellets. The produced pellets are completely free from additives or binders, making them ideal for both domestic and industrial markets.
Medium quantity production, ideal for inline systems.
- ? die:380 mm
- ? press rollers:182 mm
- Dimensions:1800x1300x2500 mm
- Weight:2000 Kg
- Morphology: Sawdust or materials with a granulometry between 0.5 mm and 3 mm.
- Moisture content: Between 8% and 14%.
- Characteristics: Compatible with all types of wood or other materials free from ferrous components.
- External adjustment of press rollers: Allows for variation during the production cycle without interrupting processing.
- Additive-free production: The process is completely free from binders, even of natural origin, ensuring a pure and natural pellet.
- High-efficiency motors: The high-efficiency motor of the die ensures significant energy savings.
- Advanced feeding system: Sawdust is loaded into the compression die via a screw conveyor controlled by an inverter, ensuring a constant and optimal flow.
- Robust press rollers: Firmly attached to the machine structure, these rollers not only improve durability but also reduce tool wear.
- Vegetable oil addition: Used to prevent material hardening in the compression circuit during production pauses.
- Water and air mixer: Adds vaporized water for optimal humidification of the raw material, improving pellet quality.
- Simplified maintenance: The pelletizing area opens easily for quick tool replacement and efficient cleaning.
- High-resistance belt transmission: Equipped with toothed belts that guarantee durability, reliability, and maximum efficiency in motor power transmission.
- Automatic lubrication: Automatic system for lubricating press rollers and the spindle, reducing manual intervention and optimizing maintenance.
- Advanced control system: Managed via a PLC (Unitronics or Siemens) with an optional touch screen, offering precise and intuitive control.
- Electrical panel with remote connection: Equipped with an Ethernet modem for remote management (optional).
- Mechanical adjustment of press rollers: Ensures optimal rotation of the compression die, customizable based on production needs.
- Automated loading system: Includes a hopper and a screw feeder controlled by an inverter, adjusting in proportion to the compression die’s torque.
- Front pellet evacuation: Designed for efficient and orderly exit of the finished product.
- Customizable die: Compression hole length adjustable from 14 to 54 mm, to suit different materials being pelletized.
- Mechanical level sensor: Installed on the hopper, ensuring constant control of incoming material.
- Advanced safety: Equipped with safety electro-locks on the access doors to the die and press rollers, and protective covers for the motor belts.
- Ease of handling: Integrated lifting hooks for forklifts, making transportation and installation easier.
- Dust extraction preparation: Ready for connection to dust and steam extraction systems, improving the work environment.
- Certifications and Manual: The N-ECO is fully compliant with CE regulations and comes with a detailed user and maintenance manual.
