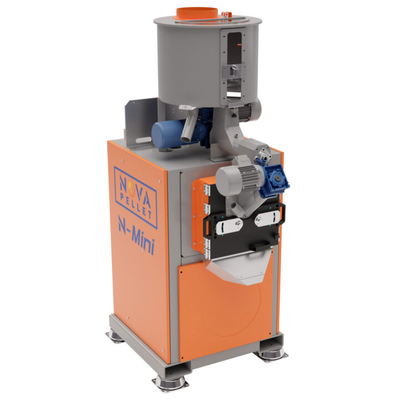

Nova - Model N-MINI -Pellet Production Plant
The Pellet production plant of Nova Pellet, complete with the N-MINI Pellet mill, are designed for processing waste from carpentry and sawmills, even from small and medium-sized operations. These systems are suitable for small environments and low power consumption, yet complete with all the necessary components for automatic and efficient pelletizing. The complete plant with N-MINI pellet mill, you can turn a business problem (waste to be disposed of) into an economic advantage, as well as a new commercial product for your company. Furthermore, N-MINI plant can also convert non-wood materials into pellets.
The N-MINI pellet mill by Nova Pellet represents an efficient and cost-effective solution for pellet production, ensuring significant economic savings. Thanks to advanced design, the N-MINI optimizes energy usage, ensuring low kW consumption per kilogram of pellet produced. This is the result of Nova Pellet’s experience in creating next-generation machinery, designed to surpass traditional technologies in the animal feed sector.
The N-MINI offers concrete economic advantages to customers, with energy savings, reduced maintenance costs, and high-quality pellet production, suitable for both domestic and industrial markets, without the use of additives or binders of any kind.
- ? die:280 mm
- ? press rollers:124 mm
- Dimensions:1400x1000x2250 mm
- Weight:1250 Kg
Input material characteristics
- Morphology: Sawdust or materials with a granulometry between 0.5 mm and 3 mm.
- Moisture content: Between 8% and 14% maximum.
- Characteristics: Suitable for all types of wood or other materials free from ferrous metals.
Technological innovations
- External adjustment of press rollers: Allows for positioning changes during operation without interrupting production.
- Additive-free production: No use of binders, even of natural origin, for a completely natural pellet.
- High-efficiency motors: Help reduce energy consumption, lowering operational costs.
- Advanced feeding system: Sawdust is fed into the compression die via a double screw conveyor, ensuring a continuous and steady flow.
- Robust press rollers: Firmly attached to the pellet mill structure, ensuring stability and durability over time.
- Vegetable oil addition: Used at the start and end of the processing cycle to prevent material hardening in the compression circuit.
- Water and air mixer: For humidifying the raw material with vaporized water, optimizing pellet quality.
- Compact design: Reduced space requirements, making installation and use in limited spaces easier.
- Simplified maintenance: Reduced cleaning and maintenance time thanks to direct access to the pelletizing area and easy tool replacement.
- High-resistance belt transmission: Equipped with toothed belts that guarantee durability, reliability, and maximum efficiency in motor power transmission.
- Automatic lubrication: Automatic system for lubricating press rollers and the spindle, increasing operational efficiency and reducing manual intervention.
- Advanced control system: The N-MINI features both mechanical and electrical operation, managed by a PLC and an optional electrical panel with modem for remote control.
- Manual adjustment of press rollers: Allows precise control of the pellet compression process.
- Feeding system: Material is loaded through a hopper and a screw feeder regulated by an inverter, in proportion to the torque of the compression die.
- Customizable die: Compression hole length adjustable from 14 to 50 mm, adaptable to the type of material being pelletized.
- Front pellet evacuation: Designed for easy collection and handling of the produced pellets.
- Advanced safety: Equipped with safety electro-locks on the compression die and press rollers access doors, and protective covers for motor belts.
- Ease of handling: Integrated lifting hooks for forklift, making it easy to move and install.
- Dust extraction preparation: Facilitates the connection of dust and steam extraction systems, keeping the work environment clean and safe.
- Certifications: Fully compliant with European directives, with user and maintenance manuals and CE marking.
