NovaSensor - Model P330W -Absolute Pressure Sensor

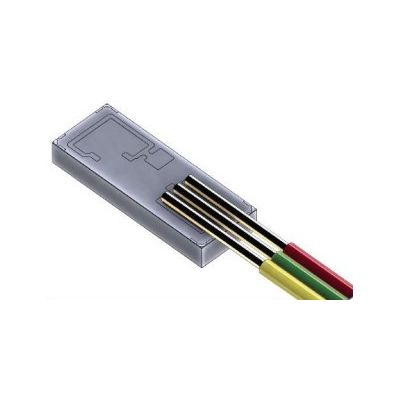

NovaSensor P330W Absolute Pressure Sensor is a Piezoresistive (PRT) Pressure Die, offering the same superior stability and sensitivity as in larger die, but in an extremely small footprint, making it ideal for invasive applications where small size is critical. Additionally, it has excellent measurement accuracy, which also makes it ideal for demanding applications with restricted dimensional profiles, such as medical catheters and IC packages.
P330W employs NovaSensor’s proprietary SenStable® processing technology, providing excellent long-term stability and repeatability.
When excited with a DC voltage source, P330W produces a mV output that is proportional to the applied pressure. P330W employs a half-bridge design, which requires two external resistors to complete a full bridge configuration. Additional components may be added to calibrate the output of the sensor.
- Cardiovascular
- Respiratory
- Intracranial
- Urological/Rectal
- Ablation
- Extremely small die: 900µm x 330µm x 120µm cross-section
- Stable, accurate pressure measurement of ±6mm Hg (preliminary)
- Low power consumption
- Absolute pressure sensing
- Standard pressure range of 450 to 1050 mm HgA
- 4500mm HgA burst pressure
