NOVONIX - Model CMA-HEX-99-56 -UHPC 10A Channel Module
FromNOVONIX

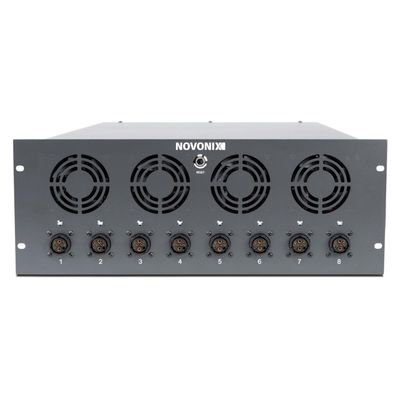

The UHPC 10A Channel Module from NOVONIX is an advanced instrument designed for precise measurement and control of current and voltage in battery testing applications. This module promises high precision and low noise, delivering superior data quality for enhanced confidence in test results. It features a current range from 100μA to 10A, with a resolution of less than 20ppm FSR and an accuracy of 0.01% FSR. The module also offers a voltage range of 0V to 5V, with a resolution below 100μV and an accuracy of 200μV. Integration with RTD temperature sensing allows for high precision temperature measurements with a resolution of ±0.01°C and accuracy of ±0.5°C. The unit is engineered to manage 8 test channels within a compact 19” x 7” x 27” frame, suitable for bench or rack mounting. Its operation is optimized when paired with NOVONIX Thermal Chambers, ensuring the temperature stability essential for precise UHPC experiments.Most popular related searches
precision temperature monitoring
high-temperature monitoring
temperature monitoring
noise data
coulometry
NOVONIX’s industry leading Ultra-High Precision Coulometry (UHPC) Channel Modules accurately measure and control current and voltage, with high precision and low noise, providing better quality data that allow for greater confidence.
Current
Range: 100μA, 1mA, 10mA, 100mA, 1A, 10A
Resolution: <20ppm FSR
Accuracy: 0.01% FSR
Noise: 0.002% FSR
Temperature Coefficient: 0.002% FSR over 23 ±5°C
Voltage
Range: 0V-5V
Resolution: <100μV
Accuracy: 200μV
Noise: 100µV
Temperature Coefficient: 0.002% FSR over 23 ±5°C
Current
Resolution: <20ppm
Accuracy: 0.005% FSR
Noise: 0.002% FSR
Temperature Coefficient: 0.002% FSR over 23 ±5°C
Voltage
Resolution: 1μV
Accuracy: 200μV
Noise: 100µV
Temperature Coefficient: 0.002% FSR over 23 ±5°C
