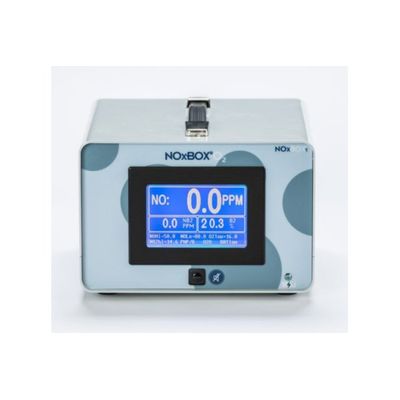

NOxBOXO2 - Nitric Oxide Monitoring System
FromNOxBOX Ltd
The NOxBOXO2™ monitor is the flagship of Nitric Oxide monitoring, allowing accurate, real-time monitoring of not only Nitric Oxide (NO) and Nitrogen Dioxide (NO2) but also Oxygen (O2) levels. This additional feature enables the user to monitor the exact concentration of Oxygen entering the patient, as this is often different from that indicated on the ventilator once dilution with Nitric Oxide has occurred. The internal pump ensures that the sensor is constantly exposed to constant gas pressure and flow rate, enabling the NOxBOXO2™ monitor to be used with both ventilated and spontaneously breathing patients.
Most popular related searches
nitric oxide monitor
nitric oxide monitoring
NO/NO2
electrochemical sensor
electrochemistry
oxygen concentrator
The NOxBOXO2™ features alarms that can be adjusted to suit the range being used, these alarms include:
- Low NO – to prevent sudden cessation of NO delivery
- High NO – warning for potential over dosage of NO
- High NO2 – avoiding NO2 poisoning
- Low O2 – to ensure correct concentration of O2
- Easy connection with all ventilators, using NOXKIT-V connection kit.
- Measuring Gases : Nitric Oxide (NO), Nitrogen Dioxide (NO2), Oxygen (O2)
- Sample Flow Rate : Approx. 250 ml/min
- Mode of operation : Continuous
- Detection Principle : Sealed Electrochemical Sensor
- Display : Graphical LCD
- Alarms : Audible and visible
- Dimensions : 240 (D) x 210 (W) x 140 (H) mm3
- Weight : Approx 4 kg including batteries
- Construction : Aluminium
- Disclaimer : Specifications subject to change. U.K. / EU specifications shown. Product may not be authorized for sale in other jurisdictions.
