Design according to needs (diffusers according to filtering media used, cylindrical height, connections, etc …)
Designs according to filtering media used (Sand, activated carbon, AFM, etc...)
Different chemical barriers according to needs (Ionic exchanger, anionic exchanger (ANION), cationic exchanger (CATION), softener, denitrification, etc...)
Different chemical barriers depending on the regeneration or fluids in the vessel (Caustic soda (NaOH), Hydrocloric acid (HCl), Sulfuric acid (H2SO4), etc... )
Emptying plug
PVC GAS threaded plug
Top lid
Plasticized steel/PVC/Polypropylene top lid
Bottom lid
Plasticized steel/PVC/Polypropylene bottom lid
Nozzle plate
GRP nozzle plate, built together with the end. KSH polypropylene nozzles. 0.2 or 0.5 mm slots
Legs
Polyester closed legs. Check anchorage system
Sight glass
Methacrylate circular sight glass. Only provided as a standard in some models (Check data sheets)
Top distribution
Top diffuser with PVC pipes. For other distributions, check "Other distributions" in options
Threaded connections
Threaded connections: Polyester casted GAS threads. Ask for other standards (ANSI, JIS...)
Man hole
Polyester casted manhole with plasticized steel lid. Transparent methacrylate lid available for pressures of 2.5 kg/cm². Manhole orientation according to needs. Only avialable for some models

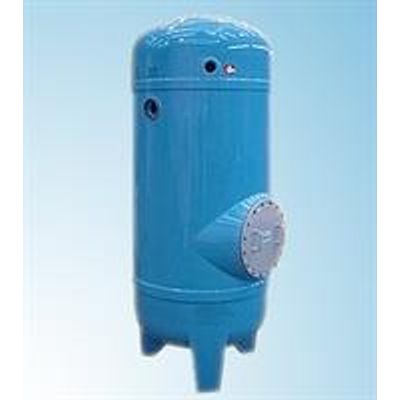

- Body Laminated polyester reinforced with fiberglass
- Top lid Plasticized steel / PVC / Polypropylene
- Bottom lid Plasticized steel / PVC / Polypropylene
- Connections Polyester casted threads / flanges
- Design pressure 2.5 / 5 / 7 kg/cm²
- Emptying plug
- Sight glass Transparent methacrylate (according to model)
- Side manhole
- Nozzle plate Laminated polyester reinforced with fiberglass
Other distributions
Distribution based on customer needs
Pipe support
Stainless steel pipe support
Sight glass
GAS threaded methacrylate sight glass. Threads casted in polyester
Aditional connections
Aditional connections (flanges or threads) for filling, emptying, etc
Methacrylate top lid
Transparent methacrylate lid. Only for P = 2.5 kg/cm²
Anchorage system
Direct anchorage system to ground. Ask for other anchorage systems
Cylindrical height
Customizable cylindrical height based on customers requests
High chemical resistance
Corrosion resistant chemical barrier based on customers needs. (ANION, CATION... )
Name plate support
Customizable measures based on customers requests
Front valve support
Stainless steel front valve support. Different measures available. Ask for more information
Polypropylene lids
Connections based on customers needs
PVC lids
Connections based on customer needs
