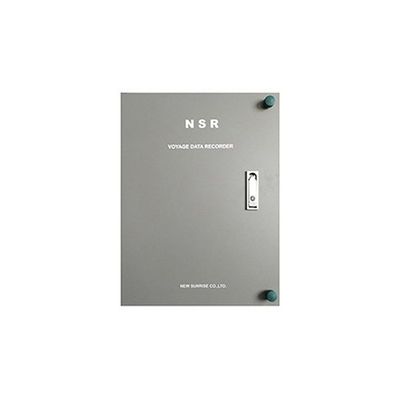

NSR - Model 9000 VDR -Voyage Data Recorder
NVR-9000 VDR is designed to comply with the latest IMO rules of MSC.494 (104), IMO MSC.302 (87), IEC 61996-1, IEC 62923-1, IEC 62923-2. NSR`s own FFC and FPC adopted. Real monitoring software available for easy check. Flexible configuration for either VDR or SVDR. Linux O/S used in firmware of VDR system. Large size color LCD with touch screen operation. Data interface to BAM System. Store data for min 48 hours both in Float-free Capsule (FFC) and Fixed Protective Capsule (FPC). Store data for min 30days/720 hours in Data Acquisition Unit. Record image of two radars and two ECDIS. Three separate channels for audio input: One for up to 4 microphones One for up to 4 microphones One for 2 VHF audio As standard configuration, below ports provided: Serial port x 24 ch (8ch at DAU and 16 ch at DEU) Digital port x 64 ch (DEU) Analog port x 8 ch (DEU) PC software and Phone APP are available for playback and realtime monitoring. CCS type approval. DNV type approval.
