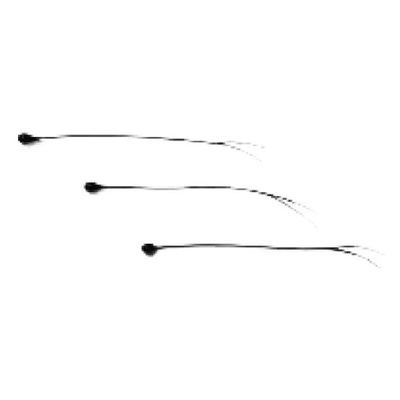

Thermometrics Epoxy - Model Type 65 -NTC Interchangeable Thermistors

• Suitable for temperature measurement, control and compensation

• Precision, solid state temperature sensor
• Suitable for use over range of -40°C to 105°C (-40°F to 221°F)
• High sensitivity greater than –4%/°C at 25°C (77°F)
• High reliability and stability over interchangeable range
• Heavy isomid insulated bifilar nickel lead wires (0.1 mm diameter)

• Interchangeability down to ±0.05°C (±0.09°F)
• Special tight tolerances in the clinical range for medical applications
• Resin-coated for good mechanical strength and resistance to solvents

• Dissipation Constant : 0.5 mW/°C (still air) 4 mW/°C (stirred oil)
• Thermal Time Constant : 8s (still air) 0.5s (stirred oil)
• Maximum Power (25°C/75°F) : 25 mW
• De-rated from 100% at 25°C (77°F) to 0% at 100°C (212°F)
• Resistance vs. Tolerance : See datasheet.

Options:

• Other resistance values
• Other tolerances or ranges
• Other lead wires or lengths
• Non-standard R vs T curves
• Controlled dimensions
