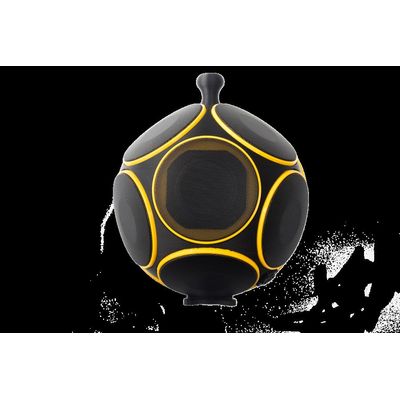

Ntek - Model OMNI 4” HP -Omnidirectional Sound Source
The OMNI 4″ HP omnidirectional sound source is the most performant solution to achieve isotropic sound radiation. It allows correct insulation and reverberation time measurements even in large testing environments.
OMNI 4” HP gives the user high manageability and portability, which are essential requirements for acoustic measurements. OMNI 4” HP represents the best compromise between weight and radiated sound power.
The twelve loudspeakers array composing the OMNI 4” HP is the matter of its remarkable sound power level, preserving the reduced weight of the sound source.
Thanks to the additive manufacturing process, it has been possible to design a solid structure that absorbs shocks and impact, preserving the dodecahedron’s integrity.
OMNI 4” HP is supplied with 6 meters connecting cable for the amplifier to be moved more easily inside the measurement field.
Code
30300
STANDARD EQUIPMENT
- 6 meters connecting cable
Optional:
- Soft carry bag with shoulder strap
- Flight case (rigid)
- Tripod + soft bag with shoulder strap
CONFORMITY LAWS
- UNI EN ISO:
- 140-4, 10140, 16283-1, 3382, 354;
- Directivity (D) according to: 140, 16283 and 3382.
- Conform to CE directives.
- Diameter: 280 mm
- Weight: 7,50 kg
- Max sound power level: 128 dBA
- Impedance: 3 + 3 ?
