Ntek - Model OMNI 5” -Omnidirectional Sound Source
FromNtek Srl

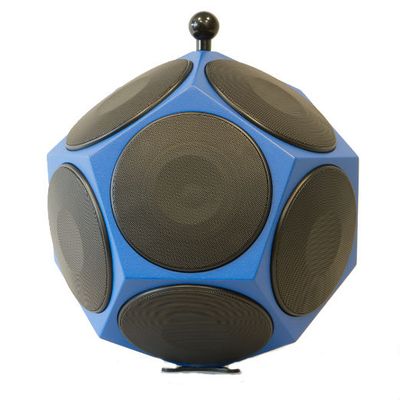

The OMNI 5″ omnidirectional sound source is the traditional design solution that isotropically radiates the sound to achieve a consistent sound field at each angle. It allows correct insulation and reverberation time measurements even in large testing environments.
Most popular related searches
OMNI 5” is specifically designed to assure the user a high SPL in the low-frequency range. This feature is a central requirement for testing wide environments.
The wooden structure has been kept to preserve the traditional look of dodecahedrons, accommodating 5 inches loudspeakers.
OMNI 5” is supplied with 6 meters connecting cable for the amplifier to be moved more easily inside the measurement field.
Code : 30001
STANDARD EQUIPMENT
6 meters connecting cable
Optional:
- Soft bag
- Flight case (rigid)
- Tripod + soft bag with shoulder strap
CONFORMITY LAWS
- UNI EN ISO:
- 140-4, 10140, 16283-1, 3382, 354;
- Directivity (D) according to:
- 140, 16283 and 3382.
- Conform to CE directives.
- Diameter: 350 mm
- Weight: 12,5 kg
- Max sound power level: 127 dBA
- Maximum power: 350 + 350 W
- Impedance: 3 + 3 ?
