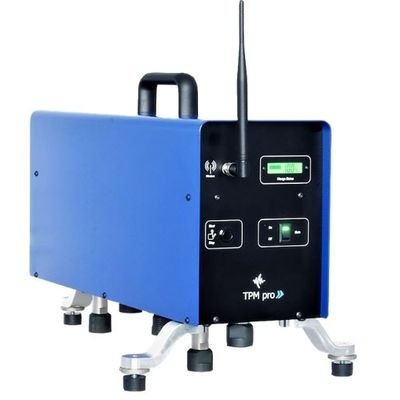

Ntek - Model TPMPro -Tapping Machine
The TPM pro tapping machine is the result of a team effort by Italian technicians specializing in the design and production of instruments for calculating and measuring acoustic impact. Its rigid and solid structure has been specifically designed to ensure stability and reliability during operation, as well as to improve portability, making the TPM pro one of the lightest footstep machines on the market.
The TPM pro is equipped with an internal kit of rechargeable lithium batteries that allow the operator to work without the obstruction of cables. The battery is automatically charged while the TPM pro is connected to the main power supply. The battery can ensure 3 hours of continuous operation when used continuously.
In 2018, the TPM pro obtained the type approval certification issued by the PTB, the primary German metrological authority recognized worldwide.
The retractable feet ensure maximum comfort when positioning the TPM pro. The machine’s height calibration can be easily performed without the need for additional tools. The calibrator (provided with the TPM pro) must be positioned under the three feet to verify the correct height of the machine. Correct alignment can be achieved by screwing and/or unscrewing the rubber anti-vibration bearings and then securing them by tightening the locking ring to the base.
The wireless remote control allows the user to turn the machine on and off remotely.
Code : 50300
STANDARD EQUIPMENT
- Wireless Standard 433 MHz remote control
- Soft carry bag with shoulder strap
- Antenna
- Lithium batteries
- Electricity supply cable 220V
- 73 mm calibrator
- Optional: New HP 866 MHz Remote Control
CONFORMITY LAWS
- UNI EN ISO:
- 10140-3, ISO 140-7, ISO 16283-2, ASTM E492, ASTM E1007.
- Conform to CE directives
TECHNICAL FEATURES
- Dimensions: 160 x 290 x 520 mm
- Weight: 11 kg with batteries, antenna and remote control
- Supports: 3 pins retractable and adjustable in height
- Power: 100 ÷ ¬240VAC, 50/60 Hz
- Consumption: 220VA
- Antenna
Battery
- Rechargeable Lithium batteries
- Duration: 3 hours
- Battery derating: <5% loss in capacity per 900 discharge/charge cycles
- Battery charging time: 2 hours
Hammers
- Five in line hammers
- Interaxcle spacing: 100±3 mm
- Weight: 500±6 g
- Diameter: 30±0.2mm
- Front radius: 500 mm
- Curve: ~ 500 mm
- Tapping rate: 10 impacts per second, rpm controlled by encoder feedback loop
- Sequence: 1, 3, 5, 2, 4
- Effective fall height: 40 mm adjustable ±5 mm
Remote control
- Wireless: 433 MHz
- Transmission ray: 80 m in open field
