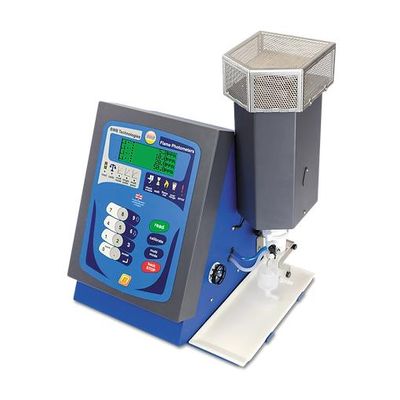

BWB - Nuclear Flame Photometer
Online, four channel Lithium detection: The measurement of lithium at low concentrations within nuclear power stations has been identified as an application perfectly addressed by a new specialty flame photometer - The BWB Nuclear. Designed in conjunction with our outstanding distributor in Germany, Mr. Wolfgang Glock, this unique flame photometer has 4 active channels for Lithium detection. Each channel is independently calibrated within the range of interest and this results in an increase of accuracy in keeping with industry demand.
Our simultaneous detection and display from each detection channel satisfies the requirement specifically and the tie of one of the channels to 2 wire 4-20mA output via supervisory control and data acquisition (SCADA™) links, completes the unit for online use.
Data output via our FP-PC PC application enables data sharing over the internet or intranet for users sharing information.
Clients who utilize our unique “Collection Cup” feature realise online real time analysis. Optional for ‘online’, continuous measurements, the collection cup turns the BWB NUCLEAR FES into an ‘online’, real time, 24/7 analyser with 4-20mA output linked to a single channel. Via a 2 wire output the BWB FP can seamlessly integrate with any SCADA™ system. Totally unique and available on all models.”
- 4 lithium detection channels focused for high accuracy lithium measurements
- 4-20ma SCADA™ two wire output set to client protocols
- In-built air compressor
- Solutions and labware included
- User selectable decimal places
- Data sharing via pc link with BWB’S FP-PC app
- IQ, OQ, PQ web-based certification available
- 10,000ppm calibration solution supplied, makes 15 litres of 100ppm solution
- 1ml and 10ml pipettes (10 each), 100x’s 20ml sample cups, 100ml flask
Sample rate
- 2 – 3.5ml/min
Tubing materials
- Silicone and Tygon®
Required desk space for Instrument
- 50cm (H) x 45cm (W) x 45cm (D)*
- For Safety reasons the Flame photometer requires 1m of unobstructed space above to allow dissipation of heat from the chimney.
Instrument size
- Nuclear Flame Photometer
- 51cm (H) x 39cm (W) x 35cm (D) (20in x 15in x 14in)
Shipping
- 65cm (H) x 49cm (W) x 43cm (D) (25in x 19in x 17in)
Weight
- Nuclear Flame Photometer – 14kg (30.8lbs)
- Shipping – 25kg (55.1lbs)
Optimal range
- Single point calibration
- Li 0.05 – 50ppm
- Multi Point Calibration
- Li 0.05 – 1000ppm
Reproducibility
- <1% Coefficient of variability for 20 consecutive samples over ten minutes at concentrations of 100ppm or less. (After instrument stabilisation).
Chemical Interference
- Na/K/Li = <0.5% to each other when equal in concentration at <100ppm
Limit of detection (LOD) and limit of quantification (LOQ)
- LOD : LOQ
- Li – 0.02ppm: Li – 0.05ppm
- Time to stability
- Less than 15 seconds after sample is introduced into the flame
Ions measured
4 independent Li channels, each providing up to 10 points of calibration
Interfaces
- USB
- 0-2.5 volt output (based on sample concentration linked to element of users choice)
- Optional 4-20mA output in place of the above
- Optional integrated printer
- .csv and .pdf generated reports and files via FP-PC software
Recommended minimum warm up time based on ambient temperature
- 21ºC – 25 minutes
Power requirements
- 100V – 250V AC at 50 or 60Hz automatically selecting

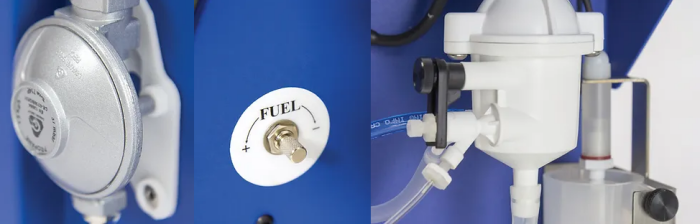

Fuel requirement
- Propane, Butane or Natural Gas* regulated to 19Bar. Flow rate of 0.4l/min
- *with modifications. BWB Technologies recommends either Propane or Butane for optimum results.
Readout
- LCD, four line, alpha numeric, back lit.
- PC Leads USB and RS232
- Power lead to suit your region
- Gas Hose
- Aspiration Kit
- Manuals covering all aspects
of the Nuclear FP - Quick Start guides
- Warranty Registration Form
- Certificates of analysis for all
provided Fluids - Material Safety Data Sheets
for all provided Fluids - The FP-PC Software installation USB
- 150ml of BWB recommended
cleaning solution - 4x 150ml calibration fluids at 10,000ppm
- 100ml conical flask with screw lid
- 100 disposable sample cups
- 1L of De-Ionised water
- 2m of waste tube
- Set of spare fuses
- 10 x 10ml pipettes
- 10 x 1ml pipettes
