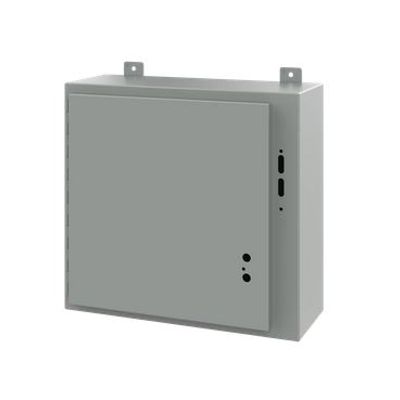

Nvent - Model Type 12 -Disconnect Wall-Mount Enclosure
These general purpose disconnect enclosures accept major brand disconnect switches and circuit breakers, available with or without the nVent HOFFMAN supplied defeater door handle and handle hardware. Each Disconnect Enclosure with Handle, Type 12 is furnished with latch pivot post(s) and adjustable door interlock bracket fastened to door, cover latch bar for door, and instructions for installing disconnects.
Most popular related searches
Industry Standards
- UL 508A Listed; Type 12, 13; File No. E61997
- cUL Listed per CSA C22.2 No. 94; Type 12, 13; File No. E61997
- NEMA/EEMAC Type 12, 13
- CSA File No. 42186: Type 12
- IEC 60529, IP65
- Model numbers ending with ""PL"" include handle and handle latching hardware"
- Seams continuously welded and ground smooth
- Bonding provision on door
- External mounting brackets
- External-formed flange around all sides of enclosure opening
- Removable door with continuous hinge
- Data pocket is high impact thermoplastic
- Oil-resistant gasket
- Collar studs for mounting optional panels
- Holes in body and door for mounting operating handle, operating mechanism, and door closing mechanism
- Available with or without nVent HOFFMAN supplied padlocking defeater handle and latching system
- Includes latch pivot post(s) and adjustable door interlock bracket fastened to door, cover latch bar for door, and instructions for installing disconnects
- Material: Mild Steel
- Finish: Powder Coated
