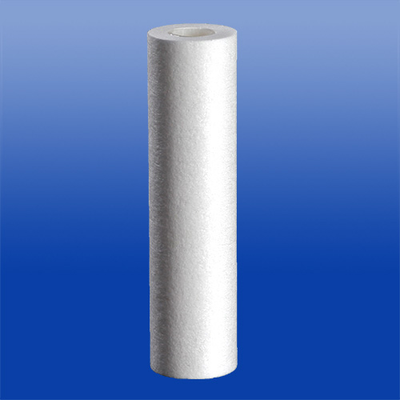

Darlly - Model DLNL Series -Nylon Melt Blown Filter Cartridges
DLNL Nylon Melt Blown Filter Cartridges are made of 100% high purity polyamide 6 fibers. The microfibers are control inflated to a support core and thermally bonded in one opera-tion without additives. Nylon filter cartridges are suitable for the filtration of solvents, amine, glycol solutions, hydrocarbon, solvent and aqueous based paints, lacquers, emulsions, waxes, return condensate and high temperature fluids.
Most popular related searches
melt-blown filter cartridge
melt-blown filter
filter cartridge
melt-blown cartridge filter
melt-blown cartridge
nylon cartridge filter
cartridge filter
process water
drinking water process
beverage filtration
- Made of 100% high purity polyamide 6 fibers (melt blown)
- No binders and adhesives
- Excellent chemical and thermal compatibility
- High temperature resistance up to 120℃
- Graded density Pore structure enchances high dirt holding capacity
- Potable & Process Water
- Particle Classifications
- Paints & Coatings
- High temperature fluids
- Food & Beverage
- Pre-filtration of RO
- Pharmaceutical
- Solvents
Dimension:
- Outer Diameter: 63mm, 115mm
- Inner Diameter: 28mm
- Length: 9.75", 9.87", 10", 20", 30", 40"
Material of Constructions:
- Media: Polyamide 6
Performance:
- Filtration Efficiency: >90%
- Max. Operating Temperature: 120?
- Max. Operating DP: 1-25µm (with inner core):2.5 bar@25?
- 0-100µm (without inner core):1.0 bar@25?
