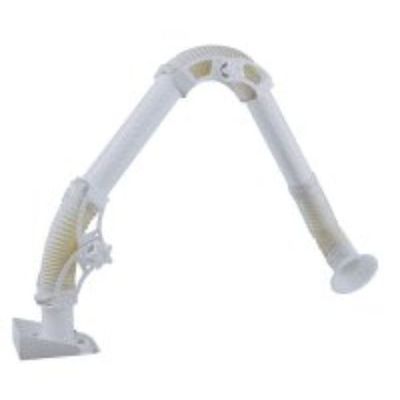

Lev-Co E-Z-ARM JR. - Model 01-004 -Ø 2.5`` High-Performance Fume Extraction Arm with External Support Joints

3` or 5` long complete with angle cut nozzle. White tubes, hood and hose. (Does not include wall mounting bracket or motor/blower.)

• Filtration: HEPA, cartridge, and oder-control filters systems available based on application
• Blower Packages: Multiple multiple options available based on specific application

• Construction: 18 ga. extruded aluminum seamless tube with spiral flex duct
• Arm lengths:4 ft. (E-Z Arm 2.5 2EO4), 6 ft. (E-Z Arm 2.5 2EO6)
• 2.5 inch diameter arm in 4 or 6 foot lengths provides for high-efficiency source point collection
• 4.75 inch diameter intake hood increases collection area and efficiency
• Strong, extruded aluminum tubing epoxy coated for corrosion resistance, lightweight for one-handed positioning
• Triple-joint section design provides complete 360 degree range of movement
• Heavy-duty stamped aluminum joints: external friction adjustments can handle continued repositioning without losing structural integrity

• Dental facilities
• Low noise
• Visually appealing
• High pressure
• No internal components for flow obstruction
• Easy positioning and adjustment

Top 5 contaminants/processes/applications:

• Soldering Fumes
• Laboratory gases and dust
• Food Dust
• Pharmaceutical
• Forensics labs

Don`t see your contaminants? Give us a call! 1-888-862-5356 or Click our instant chatbox.

IMPORTANT: For your Health and Safety, make sure to talk to an application engineer before purchasing.

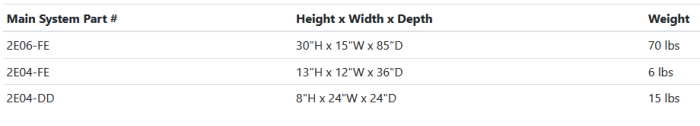

2E04-DD
E-Z Arm Jr. 2.5” dia. extraction arm, 4’ long down-flange configuration. comes with wall bracket

2E04-FE
E-Z Arm Jr.. extraction arm, 4’ long up-flange configuration. Wall Bracket must be ordered separately

2E06-FE
E-Z Arm ® 2.5" dia. 6` long, high performance, UP-FLANGE extractor with external support joint, flanged hood, white powder-coat aluminum tubes and hood, and white hose; includes universal mounting bracket with 3" dia. Outlet collar. (Order motor/blower assembly separately). with wall bracket
