R+B - Ø 327–250 mm Conical Filter Cartridges

FromR + B Filter GmbH

SHARE

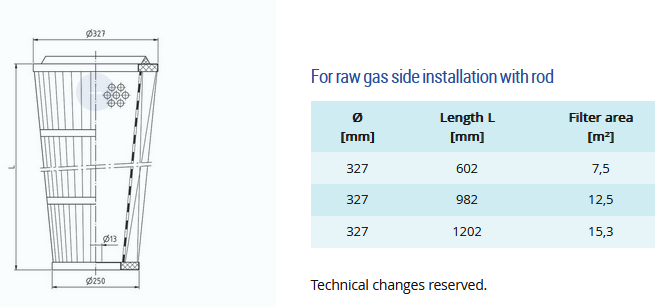

Ø 327–250 mm Conical Filter Cartridges: Compact systems. Low upflow velocity in the system. Smaller interior of the filter cartridge.

Most popular related searches

filter cartridge

cartridge filter

compaction system

polypropylene filter media

cartridge dust filter collector

dust collector parts

cartridge dust collector

Surface technology

Polyester
Polypropylene
Glass fibre paper
Cellulose
Aramid
Polyphenylene sulfide
PTFE

The filter material is adapted to the properties of the dust. Our filter media are certified according to DIN EN 60335-2-69 or DIN EN 1822.

All Filter Materials

Special filter media for unusual operating conditions are available on request.

Standard

Maximum operating temperature: 80 °C
Metal parts: galvanized steel
Cleaning with compressed air
Suitable for all ATEX zones

Special designs

Maximum operating temperature up to 140 °C
Metal parts: stainless steel
harmless with food contact according to EC + US FDA regulations

We implement your requirements

Are you looking for a solution for a new area of application in dedusting or do you have unusual operating conditions? Our technicians and engineers are happy to develop your individual solution!
