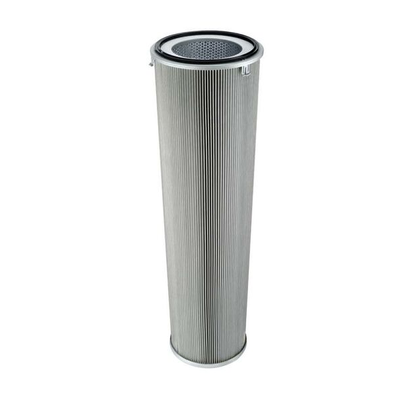

R+B - Ø 337–228 mm Conical Filter Cartridges with Click System

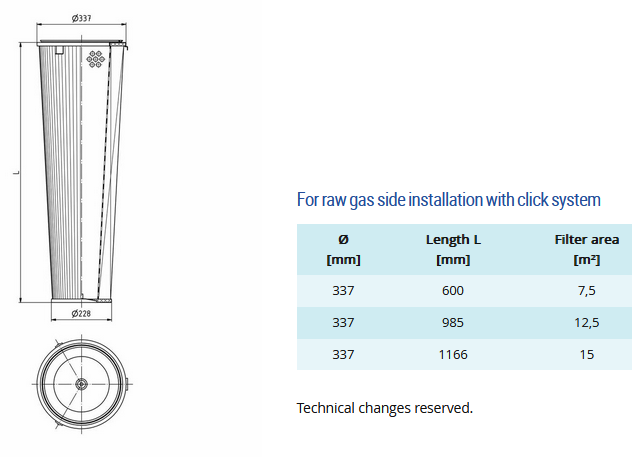

Ø 337–228 mm Conical Ø 337–228 mm Conical with Click System: For compact systems. Installation by Click system. Low upflow velocity in the dust collector. Smaller interior of the filter cartridge.
Most popular related searches
filter cartridge
dust collector
cartridge filter
compressed air
compaction system
media filter
polypropylene filter media
cartridge dust filter collector
dust collector parts
cartridge dust collector
- Spare part
- Polyester
- Polypropylene
- Glass fibre paper
- Cellulose
- Aramid
- Polyphenylene sulfide
- PTFE
The filter material is adapted to the properties of the dust. Our filter media are certified according to DIN EN 60335-2-69 or DIN EN 1822.
Special filter media for unusual operating conditions are available on request.
Standard
- Maximum operating temperature: 80 °C
- Metal parts: galvanized steel
- Cleaning with compressed air
- Suitable for all ATEX zones
Special designs
- Maximum operating temperature up to 140 °C
- Metal parts: stainless steel
- harmless with food contact according to EC + US FDA regulations
We implement your requirements
Are you looking for a solution for a new area of application in dedusting or do you have unusual operating conditions? Our technicians and engineers are happy to develop your individual solution!
