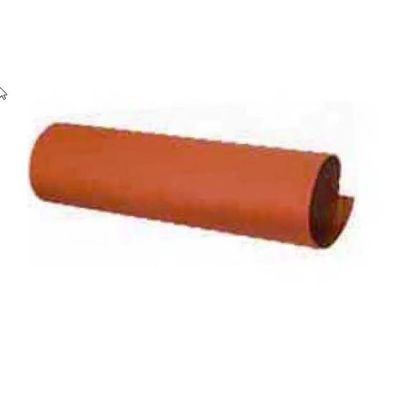

Lev-Co - Model LWHT-600 -16-005 -Ø 4"/ 5"/ 6" & 10" High-Temperature Exhausts Hose
This hose is designed for use in industrial facilities where high-temperature exhausts and abrasive contaminants are being extracted.
The Vehicle Exhaust Hose is of industrial quality, and is designed for the extraction of vehicle exhaust fumes.
Features:
- Long Life -> Abrasion resistant both externally and internally
- High temperature resistance -> 600 degrees F
- Low pressure drop -> with very smooth internal bore
- Light weight -> easy to use and place into position
- Fatigue resistant -> ideal for constant flexing applications such as hose reels and retraction systems.
- Material:2 - ply fiberglass, silicone coated
- Construction:hi - temp bonded, wire encapsulated
- Compression ratio:2:1
- Diameter (inches):4``, 5``, 6``, 8``. Other sizes available
- Available lengths:10`, 20`, 26`, 30` or 33` foot lengths
- Main System Part #: PT-SFH-10
- Height x Width x Depth: 24"H x 12"W x 13"D
- Weight: 2 lbs
- Good tear resistance
- Improved puncture resistance
- Lightweight/flexible
- Wear-resistant
Top 5 contaminants/processes/applications:
- Diesel Exhaust Fumes
- Car Exhaust Fumes
- Welding Fumes
- Smoke
- Odours
Don`t see your contaminants? Give us a call! 1-888-862-5356 or Click our instant chatbox.
IMPORTANT: For your Health and Safety, make sure to talk to an application engineer before purchasing.
PT-SFH-4
Silicone fiberglass hose 4" dia.- not suitable for hose reels
- sold per ft, 25ft min.
PT-SFH-5
Silicone fiberglass hose 5" dia.- not suitable for hose reels
- sold per ft, 25ft min.
PT-SFH-6
6" diameter 500 degree hose
PT-SFH-10
silicone fiberglass hose 10" dia. Ideal for simple drops.
Not well suited to spring loaded hose reels.
