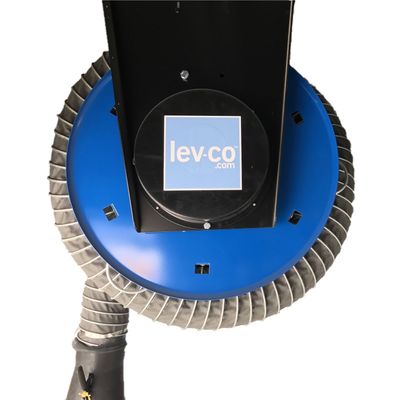

Lev-Co - Model 14-004 -Ø 4``/ 5``/ 6`` & 8`` Spring Recoil Hose Reel

Mechanical Spring Hose Reels have a locking mechanismfor precise hose placement on a tailpipe or stack, allowing for easy lowering and retraction onto the reel. It is an ideal solution for eliminating tripping hazards in the work area and are perfect systems for bus depots, garages or service stations.

The hose is lowered manually against spring tension. The reel is equipped with a locking-ratcheting mechanism, which locks the reel at the required position. Further pulling the hose releases the locking catch, and then the hose reels back automatically.

Hose Reels may be mounted under a roof, in a wall, supporting column or at the end of an extension boom and have typical flow rates between 300CFM and 2000CFM.

Main options include:

• Low Temp. Hose: suitable for temperatures up to 350º F
• High Temp. Hose: suitable for temperatures up to 850º F
• Direct Mount Fans between 0.5HP to 5HP
• Overhead Stack Adapters
• Variable Frequency Drives

• All Spring Recoil Hose Reels have a 160mm (6.4") dia. outlet.
• Powder-coated finish spring recoil reel
• 4``/5”/6”/8” dia. hose with hose stop and hose clamps.

Note: Hose will be shipped in a separate box.

• Space saving:The hose reel is capable of holding up to 25 feet of hose in a footprint of 23``x53``
• Perfect for bus stations, garages, or service stations
• Easy installationsaves money on the need for an third party contractor
• Available as either wall or ceiling mounted to accommodate multiple configurations
• Easy operation:Much like an extraction arm, this system is easily pulled down for use, and doesn`t require any adjustment before placement, making setup much quicker

Top 5 contaminants/processes/applications:

• Car Exhaust Fumes
• Diesel Exhaust Fumes
• Welding Fumes
• Chemical Fumes
• Grinding Sparks

Don`t see your contaminants? Give us a call! 1-888-862-5356 or Click our instant chatbox.

IMPORTANT: For your Health and Safety, make sure to talk to an application engineer before purchasing.

 Main System - Low Temp Hose Reel - 350 degrees F

HRM-4-25-LT

4" Spring Recoil Hose Reel c/w 7.5m (25`) of 350 degrees F hose.

• Fan & Tailpipe adapter SOLD SEPERATELY*

HRM-4-33-LT

4" Spring Recoil Hose Reel c/w 10m (33`) of 350 degrees F hose.

• Fan & Tailpipe adapter SOLD SEPERATELY*

HRM-5-25-LT
5" Spring Recoil Hose Reel c/w 7.5m (25`) of 350 degrees F hose.

• Fan & Tailpipe adapter SOLD SEPERATELY*

HRM-5-33-LT
5" Spring Recoil Hose Reel c/w 10m (33`) of 350 degrees F hose.

• Fan & Tailpipe adapter SOLD SEPERATELY*

HRM-6-25-LT
6" Spring Recoil Hose Reel c/w 7.5m (25`) of 350 degrees F hose.

• Fan & Tailpipe adapter SOLD SEPERATELY*

HRM-6-33-LT
6" Spring Recoil Hose Reel c/w 10m (33`) of 350 degrees F hose.

• Fan & Tailpipe adapter SOLD SEPERATELY*

HRM-8-25-LT
8" Spring Recoil Hose Reel c/w 7.5m (25`) of 350 degrees F hose.

• Fan & Tailpipe adapter SOLD SEPERATELY*

HRM-8-33-LT
8" Spring Recoil Hose Reel c/w 10m (33`) of 350 degrees F hose.

• Fan & Tailpipe adapter SOLD SEPERATELY*

Main System - High Temp Hose Reel - 850 degrees F

HRM-4-25-HT
4 Spring Recoil Hose Reel c/w 7.5m (25`) of 850 deg. F hose.

• Fan & Tailpipe adapter SOLD SEPERATELY*

HRM-4-33-HT-850
4 Spring Recoil Hose Reel c/w 10m (33`) of 850 deg. F hose.

• Fan & Tailpipe adapter SOLD SEPERATELY*

HRM-5-25-HT-850
5 Spring Recoil Hose Reel c/w 7.5m (25`) of 850 deg. F hose.

• Fan & Tailpipe adapter SOLD SEPERATELY*

HRM-5-33-HT-850
5 Spring Recoil Hose Reel c/w 10m (33`) of 850 deg. F hose.

• Fan & Tailpipe adapter SOLD SEPERATELY*

HRM-6-25-HT
6 Spring Recoil Hose Reel c/w 7.5m (25`) of 850 deg. F hose.

• Fan & Tailpipe adapter SOLD SEPERATELY*

HRM-6-33-HT-850
6" Spring Recoil Hose Reel c/w 10m (33`) of 850 deg. F hose.

• Fan & Tailpipe adapter SOLD SEPERATELY*

HRM-8-25-HT
8 Spring Recoil Hose Reel c/w 7.5m (25`) of 850 deg. F hose.

• Fan & Tailpipe adapter SOLD SEPERATELY*

HRM-8-33-HT-850
8 Spring Recoil Hose Reel c/w 10m (33`) of 850 deg. F hose.

• Fan & Tailpipe adapter SOLD SEPERATELY*

Standard Component Configuration

HR-M-4-XXX
Hose Reel for use with 4” (100mm) Ø hose. C/W hose stop and 4” inlet connection. Order hose separately.

Please specify hose length when ordering.

HR-M-5-XXX
Hose Reel for use with 5” (125mm) Ø hose. C/W hose stop and 5” inlet connection. Order hose separately.

Please specify hose length when ordering.

HR-M-6-XXX
Hose Reel for use with 6” (150mm) Ø hose. C/W hose stop and 6” inlet connection. Order hose separately.

Please specify hose length when ordering.

HR-M-8-XXX
Hose Reel for use with 8” (200mm) Ø hose. C/W hose stop and 8” inlet connection. Order hose separately.

Please specify hose length when ordering.

• High Temp Hose Reel - 600 degrees
• Hood Options
• Hood & Nozzle Accessories
• Over-head Stack adapter - High Temperature Rubber
• Low Temp Replacement Hoses
• High Temp Replacement Hoses
• Horizontal Boom Extensions
• Direct Mount Fans - 1.0 HP - (Motor Starter not included)
• Direct Mount Fans - 2.0 HP - (Motor Starter not included)
• Direct Mount Fans - 3.0 HP - (Motor Starter not included)
• Direct Mount Fans - 5.0 HP - (Motor Starter not included)
• Variable Frequency Drives
• Hose Rings
• Accessories
