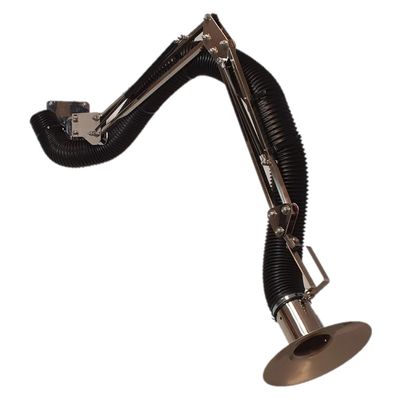

Lev-Co Super-Max - Model 01-008 -Ø 5``/ 6.5`` & 8`` Stainless Steel Extraction Arms with Wall Bracket
Stainless Steel Extraction arms with wall bracket. Available lengths include 7`, 10`, or 14’. Duct diameter range includes 5``, 6.5, and 8``. Airflow rates are 300CFM for 5``, 650CFM for 6.5``, and 1000CFM for 8``.
Parallelogram design: Externally mounted support arms cause less resistance in airflow through the whole extraction arm. The external hydraulically suspended parallelogram arms make the hood incredibly easy to move and 100% stable in all positions.
It is equipped with a long strong steel hood to withstand sparks, chemicals, and heat. The hood has a built-in adjustable damper. The hose has a smooth inside and is very durable.
Adapted for central or individual extraction fan.
- Rigid stainless steel tubes
- Flexible hose
- 4-6 friction release external joints
- Swivel base joint/seal
- High efficiency stainless steel bell hood with integral 360 degree handle
- Flameproof PVC hose with internal steel spiral for long-lasting durability
- Steel hood with combined universal/spinning-joint
All parts are laser cut for maximum precision.
- Main System Part #: P-182-Hose Joints
- Height x Width x Depth: "H x "W x "D
- Weight: 0 lbs
- Nothing in the hose to disturb the airflow
- Better suction for a given fan size
- No dirty support arms and friction joints
- Lower noise level
Top 5 contaminants/processes/applications:
- Welding Smoke
- Food & Pharma Dust
- Paint Fumes from spray balms
- Prosthetic Dust
- Contaminants from Dental Processes
Don`t see your contaminants? Give us a call! 1-888-862-5356 or Click our instant chatbox.
IMPORTANT: For your Health and Safety, make sure to talk to an application engineer before purchasing.
- Main System 6.5"
- Main System 4.5"
- Hood Options
- Hood & Nozzle Accessories
- Direct Mount Fans - 1.0 HP - (Motor Starter not included)
- Stanchions & Wall Brackets
- Hose Connectors and Fittings
P-182-Hose Joints
3m (0.5+3m) - 160 mm(6.5") dia., mirriorpolished, acidproof stainless steel arm w/ s-160-1ft hose joints. Includes: wall bracket, hose and hood. External hydraulically suspendid parallelogram arm. Free flow in the hose. Incredibly easy to move ans stays in position. Can easily be demounted and sterilized in an Autoclave.
