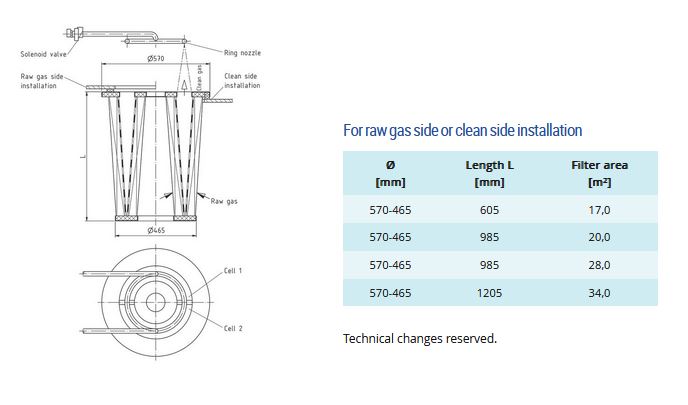

R+B - Ø 570–465 mm Filter Cartridges
Large filter area on small space. Filter side inside and outside. Alternate cleaing by jet pulse during operation. Conical shape.
Most popular related searches
filter cartridge
cartridge filter
industrial dust collector
blasting machine
polypropylene filter media
welding smoke
solenoid valve
industrial dust
compressed air
media filter
- Shot blasting machines
- Industrial dust collectors
- Separation of welding smoke
- Pharma industry
- Chemical industry
- Polyester
- Polypropylene
- Glass fibre paper
- Cellulose
- Aramid
- Polyphenylene sulfide
- PTFE
The filter material is adapted to the properties of the dust. Our filter media are certified according to DIN EN 60335-2-69 or DIN EN 1822.
Special filter media for unusual operating conditions are available on request.
Standard
- Maximum operating temperature: 80 °C
- Metal parts: galvanized steel
- Cleaning with compressed air
- Suitable for all ATEX zones
Special designs
- Maximum operating temperature up to 140 °C
- Metal parts: stainless steel
- harmless with food contact according to EC + US FDA regulations
- Ring nozzle
- Solenoid valves
- Valve controls
We implement your requirements
Are you looking for a solution for a new area of application in dedusting or do you have unusual operating conditions? Our technicians and engineers are happy to develop your individual solution!
