Rota Sizdirmazlik Elemanlari San. Tic. Ltd. Sti.

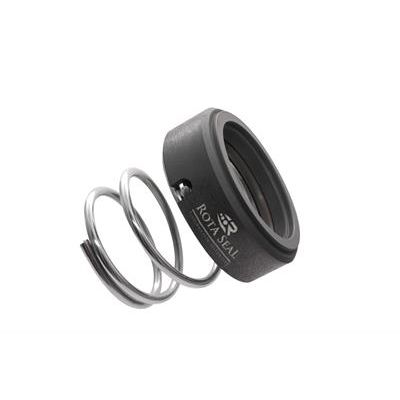

Rota - Model RT2 -O - Ring Seals
Shaft Diameter : d1= 6…38 mm. Pressure : p1 = 10 bar. Temperature : t = -20 … + 140 °C. Speed: vg = 15 m/s. Axial Movement : ± 1.0 mm.
Material Combinations
- Seal Face : Car
- Seat Face: Cer,CrNi,SiC
- Secondary Seal: FKM , NBR , EPDM
- Single Seal
- Unbalanced
- Conical Spring
- Directional Seal
- EN 12756
