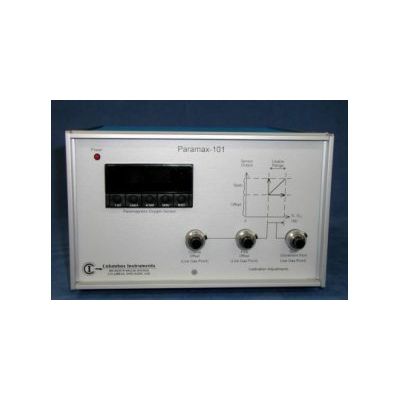

Columbus Instruments - Model Paramax 101 -O2 Analyzer

Some electrochemical sensors can be “poisoned”, or mis-read oxygen content, due to the presence of other gases. Zirconia sensors cannot operate with potentially combustible components present in the sample due to the high operating temperature of the sensor.

The Paramax-101 has the unique ability of being adjusted to operate within a 1% span anywhere within its 0-100% operating range. Within the required span, the Paramax-101 delivers an operating stability of 0.001% O2 for up to 6 hours. Precise pressure & temperature controls within Paramax-101 and magnetic shielding allow it to achieve levels of performance that place it at the forefront of oxygen sensing technologies.

Connections at the rear of the Paramax-101 include current and voltage outputs for connection to data collection systems or controllers. An optional RS-232 connection is available for direct connection to computers or controllers.

The Paramax-101 requires a sample flow of 5 to 200 cc/min for operation. Response time, (90%) to a step change in concentration at 200 cc/min, is 5 seconds. The required flow can be created by external means or with an optional sampling pump. Higher flows can be accommodated by using a shunt to divert excessive flow.

Features / Specifications

• Paramagnetic Sensing
• 0-100% O2 operating range
• Not influenced by most other gases
• RS-232 presentation of data
• Stability of 0.001% O2 (for 6 hours)
• Adjustable range and span
• Total Span: 0-100%
• Resolution: 0.002% of specified range
• Stability: 0.001% O2 over 6 hours
• Air Sample Flow: 5 to 200 mL/min (larger with high flow bypass)
• Outputs: 4-20mA, 0-1V
• Operating Temperature: Ooto 30oC

• 8221A Paramax-101 O2 Analyzer w/ Digital Display
• 8222 Paramax-101 Gas Sample Pump Option
• 8223 Paramax-101 Chemical Gas Sample Drier
• 8224 Paramax-101 RS-232 Communication Option
• 8225-HTD Paramax-101 Hydroscopic Tubing Dryer
