OBERG - Model SB300 - Oil Filter Baler ...

OBERG - Model SB300 -Oil Filter Baler Use Commercial Processors

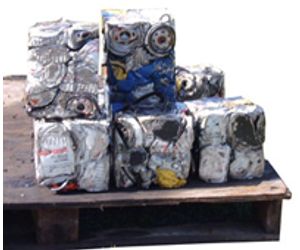

The Model SB-300 Oil Filter Baler is built for continual use by commercial processors of used oil filters. It is made to accommodate high volume processors. Producing over 170,000 lbs of main ram force, the SB-300 turns filters into a tight, dense brick that can be sold to a scrap metal dealer or given to a steel mill for recycling.

Most popular related searches

Overall Length: 10`
Overall Width: 4`
Overall Height Closed: 6`
Overall Height Extended: 8`6"
Shipping Weight: 10,000 lbs.
Feed Opening: 24" x 20"

Main Ram Force: 170,000 lbs.
Ram Face Pressure: 4,722 psi
Shearing Force: 170,000 lbs.
Power Unit: 35gpm Vickers Variable Volume Piston Pump
Electrical: 25hp 230v/460v 3 Phase 1765 rpm 60 Cycle, 120/60 Amp
Hydraulic Operating Pressure: 3,000 psi
Hydraulic Reservoir: 100 gallons
Cycle Time: 45 seconds
Operation SmartLogic™: Automatic and Manual
Operator: Single Operator
Loading: Hopper Feed
Bale Discharge: Auto Bale Discharge w/ Bale Track
Bale Dimentions: 6" x 6" x variable
