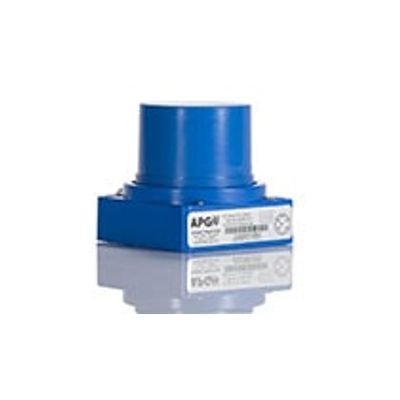

APG - Model IRU-2000 -Object Detection Ultrasonic Sensor

Surface Mount
These ultrasonic sensors are built for use outside of the tank environment. Instead of a threaded fitting, they simply bolt onto a flat surface. The IRU-2000 transducers are often used for presence/absence detection, object profiling, and more.

Variety of Available Outputs
Outputs determine compatibility, so it’s nice to have options. From relays and trip points to 4-20mA and RS-485, the IRU-2000 ultrasonic sensors have you covered. Pick from our standard offerings or contact us about custom outputs.

• Performance
• Operating Range :
• 1 to 25 ft for liquids
• 1 to 10 ft for solids
• Accuracy : ±0.25% of detected range
• Resolution :  0.1 in.
• Response Time : Up to 50 Hz, or once every 20 ms
• Programming
• Method : RST-3002 Programming Module
• Electrical
• Supply Voltage : 24 VDC
• Physical
• Housing : BS with UV Inhibitor
• Mount : Surface Mount with 4 screws
• Approvals
• Certifications
• Models 2002, 2003, 2005
• CSA C/US General Purpose Rating
• Connectivity
• Outputs
• 1 Solid State Relay
• Isolated 4-20mA
• RS-485 with 1 NPN trip point
• 4-20mA with 2 NPN trip points
• Internet Connectivity with RST-5003
• Environmental
• Operating Temperature : -40 to 140° F
• Temperature Compensation : Internal
• Protection Rating : NEMA 4X
